Rumah ProdukKonektor tahan air melingkarRAYMO K Series Waterproof Electrical Connector

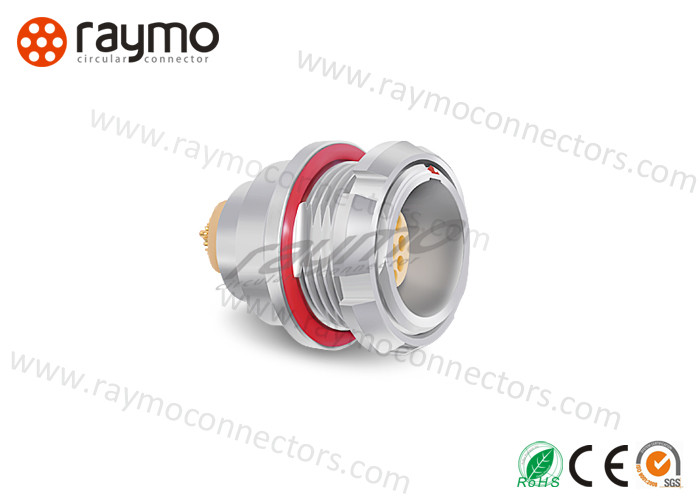

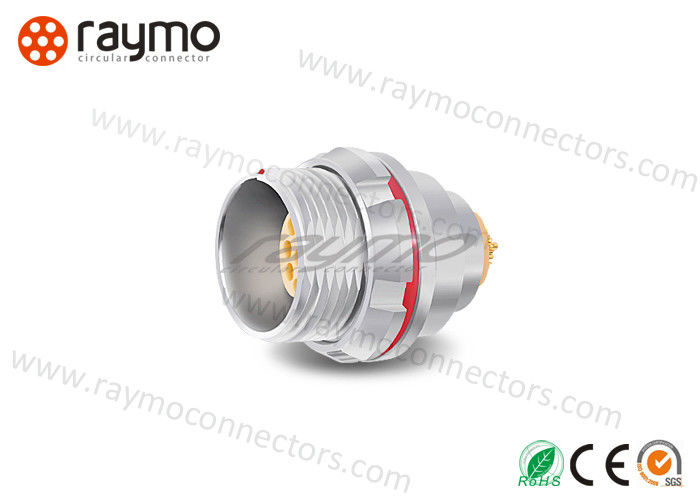

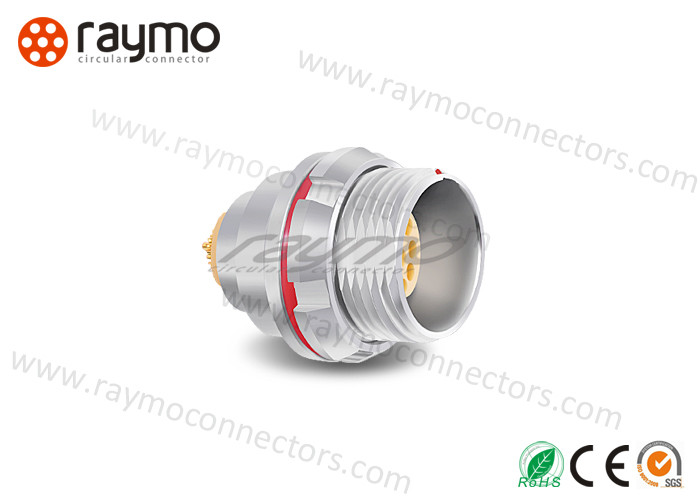

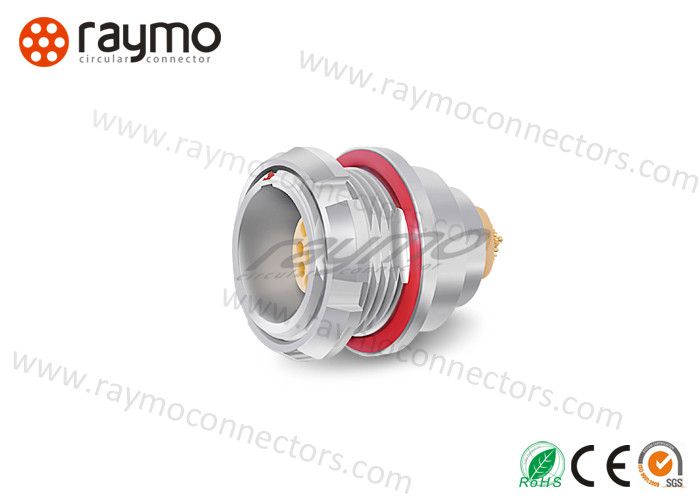

RAYMO K Series Waterproof Electrical Connector

RAYMO K Series Waterproof Electrical Connector
RAYMO K Series Waterproof Electrical Connector RAYMO K Series Waterproof Electrical Connector RAYMO K Series Waterproof Electrical Connector RAYMO K Series Waterproof Electrical Connector
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: SGS ISO9001:2015 CE ROHS2.0 REACH
Nomor model: EEG.0K.305.cll
Kuantitas min Order: 1 pc
Harga: negotiable
Kemasan rincian: 150pcs/ctn
Waktu pengiriman: 2-3 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 50000pcs Per Minggu
Hubungi sekarang
Model: EEG.0K/RM-EEG Nama prct: Konektor dorong tarik melingkar
Cangkang yang tersedia: 0K, 1K, 2K, 3K Hubungi no: 2,3,4,5,6, 0,7,8,9,10,12,14,16,21,26,30,32
Bahan kontak: Kuningan dengan berlapis Emas Bahan perumahan: kuningan dengan berlapis krom
Bahan isolator: PPS, Peek aplikasi: Tenaga listrik
Menyoroti:

waterproof wire connectors

,

waterproof cable connector

AYMO K series waterproof electrical connector Push Pull self locking panel mount connector EEG.0K.305.CLL

EEG.0K LEMO Equivalent connector,  Circular push pull panel mount connector



RM-EEG-0KC Can be 100% compatible with EEG.0K LEMO CONNECTOR but much cheaper with faster delivery.



Raymo electronics technology ltd is a professional push pull connector manufacturer intergrating connector researching, designing and development,prction and sales !. Raymo offer you various range of push pull circular connectors and cable assembly.You will find raymo connectors in widely range of military denfence, medical, Test and measurement,High Speed Camera,Submarine industry.



Part no details.



Raymo Part No. Original LEMO Part No. Item Description
RM-EEG-0KC-305-KS EEG.0K.305.CLL 0K series panel mount  socket , female contact, multipole 7pin , m   natural chrome plated, key G, for solder type contact



Available shell size and contacts



Shell size Contacts no. ( Both with Solder & PCB type )
0K 2 3 4 5 6 7 9 　 　 　 　 　 　 　 　
1K 2 3 4 5 6 7 8 10 14 16 　 　 　 　 　
2K 2 3 4 5 6 7 8 10 12 14 16 19 　 　 　
3K 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
4K 7 10 24 　 　 　 　 　 　 　 　 　 　 　 　





Specifcation



Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >96hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) 5000 mating cycles







FAG shell dimensions

RAYMO K Series Waterproof Electrical Connector 0



RAYMO Connectors advantages
  1. Cheap price, fast delivery,save your cost.
  2. Free samples.
  3. Easy mating, can be blind-mated guiding mechanism ensures precise alignment.
  4. Increased safety and user friendliness mechanical and color coding prevent misconnection.
  5. Convenient grip even with gloves circular connectors with ribbed housing profile.
  6. Increased equipment life span guiding mechanism optimally protects the contacts.
  7. Robust and shock resistant designs ideal for equipment used in the field.
  8. Long prct durability 5,000 mating cycles guaranteed.
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF and others ways according the your needs.
  3. How transport? Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.
