Rumah ProdukKonektor M12S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service

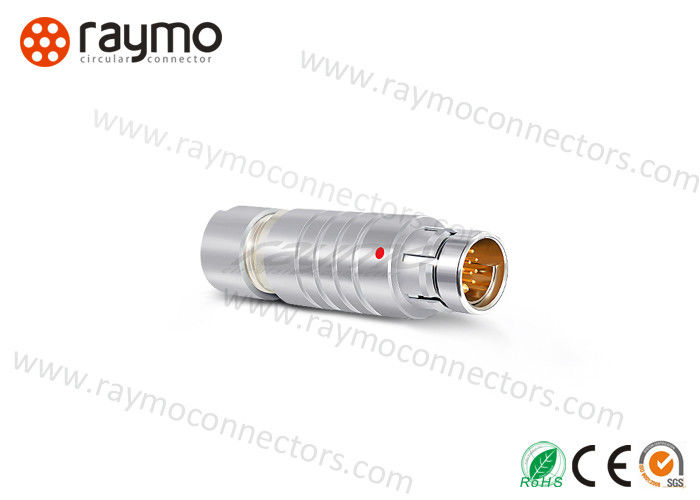

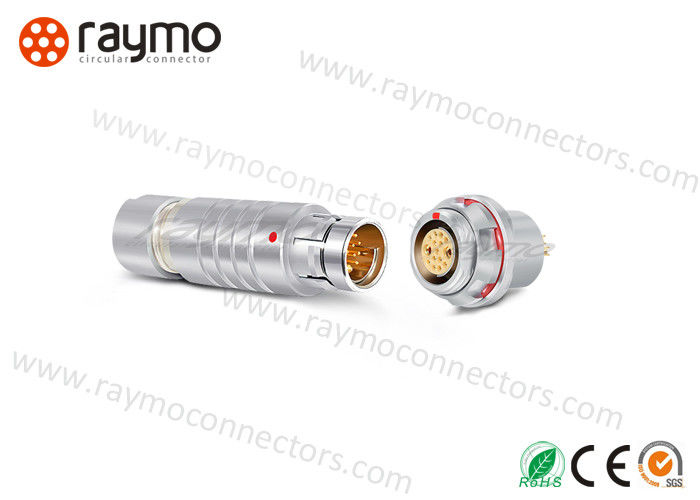

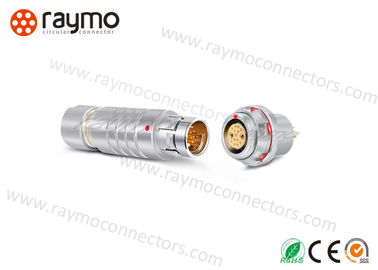

S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service

S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service
S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service
S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service
Informasi Dasar
Tempat asal: Guangdong, Cina
Nama merek: RAYMO
Nomor model: RM-S-AF, RM-SS-AF
Kuantitas min Order: 10 Piece/Pieces
Harga: negotiable
Kemasan rincian: 150 pcs per 18*15*10 karton
Menyediakan kemampuan: 5000 Piece/Pieces per Minggu
Hubungi sekarang
aplikasi: PCB Membentuk: Bulat
Ukuran cangkang: 1031Series Molti-Pole: 10,12,19 pin
Tipe kontak: Solder, cetak Pelapis cangkang luar: Kuningan Berlapis Krom
Hubungi Berlapis: Kuningan dengan berlapis emas isolator: PPS
Tingkat perlindungan: IP68 Sertifikat: CE, ROHS, ISO9001, SGS
Warna: Perak, hitam Jenis: Scart
Jenis kelamin: pria PELABUHAN: Shenzhen
Menyoroti:

waterproof wire connectors

,

waterproof cable connector


Brief intrction
  • Series F metal circular connectors in many size and outer diameter for different applications are designed to be compatible with ® Connector Series F, Fischers which with Metal half-shell alignment for easy operations.
  • Security of the push-pull self-latching system
  • Multipole contacts
  • Multipole key options to avoid cross mating
  • One key or two keys with different degree
  • Cable assembly as customer real needs
  • Waterproof IP68
Certifications
  • CE
  • RoHs2.0
  • SGS
  • ISO:9001-2015
  • Reach
Technical specifications



Pulling and inserting times : ＞5000 times
Humidity : Maximum humidity up to 95% at a temperature of 60 °
Temperature range: - 65° C, +200° C
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance : 100 g [ 6 ms]
Protention Level : IP50
Salt Cpray Corrosion test: ＞96Hrs
Terminal Type: elbow PCB
Number of positions: 1-32pins
Fastensing Type: Push pull
Shell Material : Brass
Shell Finish : chrome plated
Contact Material: Brass
Insert Material : PPS , PEEK



Shell size & Contact no. we have:



F series 0F/102 series 2 3 4 5 6 7 9
1F/103 series 2 3 4 5 6 7 8 10 12
AF/1031 series 10 12 19
2F/104 series 19



Prcts PHOTOS



S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service 0

Quality control

S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service 1

Packaging & Shipping

S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service 2

Company Information

 RAYMO is a manufactuer that:
• Focus on manufacturing & exporting various metal  & plastic circular push pull  connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISHERS • S • HIROSES • BINDERS •Military 38999
• Series has RM-B, RM-K, RM-S,  RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,
    B423 , 38999, 26482
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
• All the items can work normally after 5000times mating



S SS SA SFE Circular Waterproof Connector , Cable Mount Connector Assembly Service 3





Why choose US ?



Easy mating, can be blind-mated guiding mechanism ensures precise alignment
Increased safety and user friendliness mechanical and color coding prevent misconnection
Increased equipment life span guiding mechanism optimally protects the contacts
Robust and shock resistant designs ideal for equipment used in the field
High performance connectors designed and tested to withstand extreme conditions
Sealed up to IP50 and corrosion resistant usable underwater
Sterilizable ideal for medical applications
Functional in a wide temperature range from -65°C to +200°C
