Rumah Produkkonektor push pull melingkarFast Electrical Plug Connector , Electronic Cable Connectors Automotive Application

Fast Electrical Plug Connector , Electronic Cable Connectors Automotive Application

Fast Electrical Plug Connector , Electronic Cable Connectors Automotive Application
Fast Electrical Plug Connector , Electronic Cable Connectors Automotive Application Fast Electrical Plug Connector , Electronic Cable Connectors Automotive Application Fast Electrical Plug Connector , Electronic Cable Connectors Automotive Application
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: CE ROHS SGS ISO:9001-2015
Nomor model: Fgg.00.304.clad35z
Kuantitas min Order: 1 Piece/Pieces
Harga: negotiable
Kemasan rincian: Kantong Plastik & Karton
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: T/T, L/C, T/T, Serikat Barat
Menyediakan kemampuan: 5000Potongan/Minggu
Hubungi sekarang
Nama prct: Konektor tarik tarik Model: FGG
Ukuran cangkang: 0B Jenis kelamin: laki-laki, perempuan
aplikasi: Medis, Mesin, Militer, Audio & Video, Otomatif Jenis: Kompatibel dengan Seri BKS konektor Lemo, XLR, soket penguncian mandiri
isolator: PPS, Peek Bahan shell: Tembaga dengan berlapis krom
Warna: Perak, hitam Nomor kontak.: 3, 4, 5, 6, 7, 8.10.12.16.19pins
Ketahanan: 5000 kali mendorong tarik Peringkat IP: IP50
Jenis kontak: kontak solder bahan kontak: Kuningan dengan berlapis emas
Port ekspor: Shenzhen Kabel yang dirakit atau tidak: Ya
Menyoroti:

electronics component connectors

,

electronic cable connectors

Prct Description

RM-B Series  00B 0B 1B 2B 3B 4B 5B series circular push pull connectors with chrome plated FGG plug

Part No.:

FGG.00.304.CLAD35Z/RM-FGG-0BC-304JS35Z

Prct Description:

00B Series cable mount push pull connector, FGG plug, 4pin male contact, 35 cable collet, nut for a bend relief, one key, 0 degree, natural chrome plated shell in brass



Main features



1 Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector
2 can be 100% compatible with original connector
3 can be with different degree , such us 30, 45, 60, 90, 135,
4 can plated with white or black chrome,
5 360 angle screening for full EMC shielding.
6 ISO:9001-2015 CE RoHS2.0 SGS REACH



Technical Characteristics




Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) 5000 mating cycles



SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED



is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers



RAYMO's high quality connectors are found in a variety of challenging applications and environments including:

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

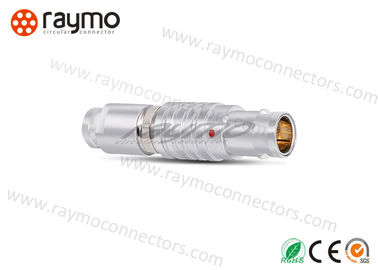

RM-B FGG Cable Plug Prcts Photo:

Fast Electrical Plug Connector , Electronic Cable Connectors Automotive Application 0

Our Exhibition
Why Choose US?

1. Are your company a professional manufacturer?

Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
