Rumah ProdukKonektor setengah bulanWaterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type

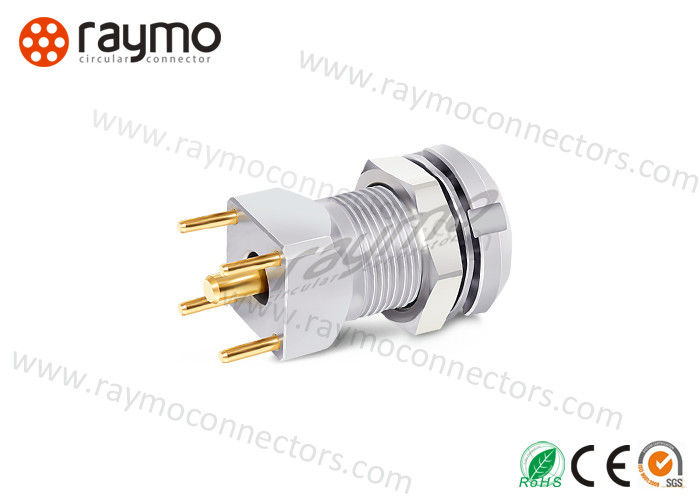

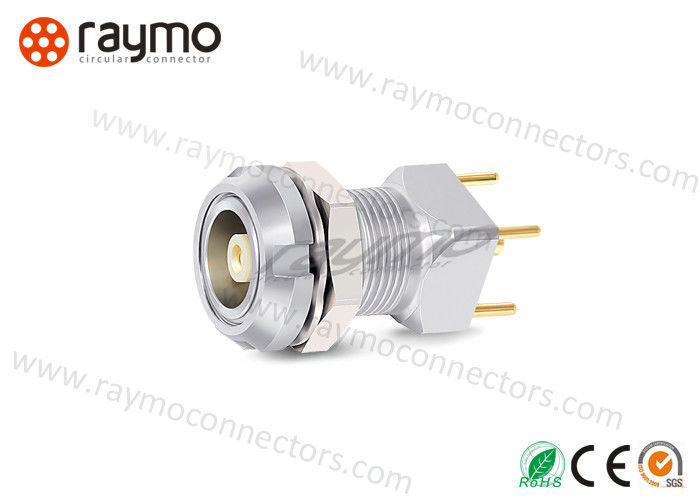

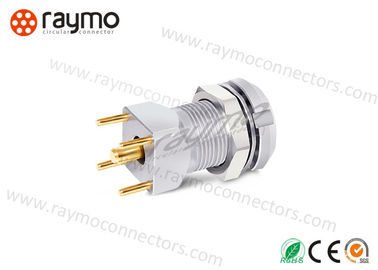

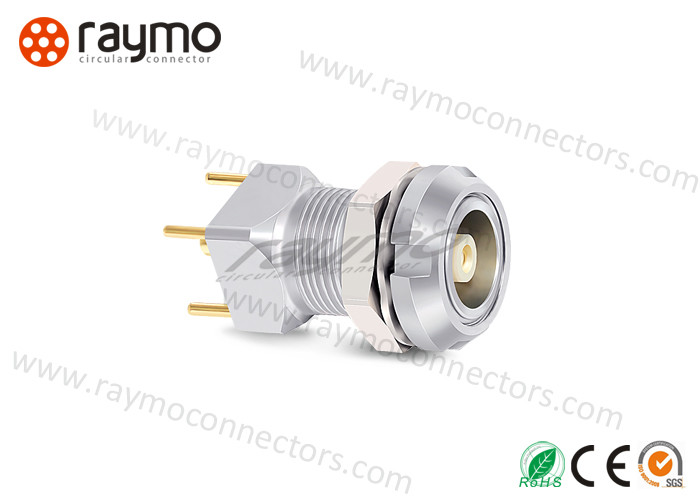

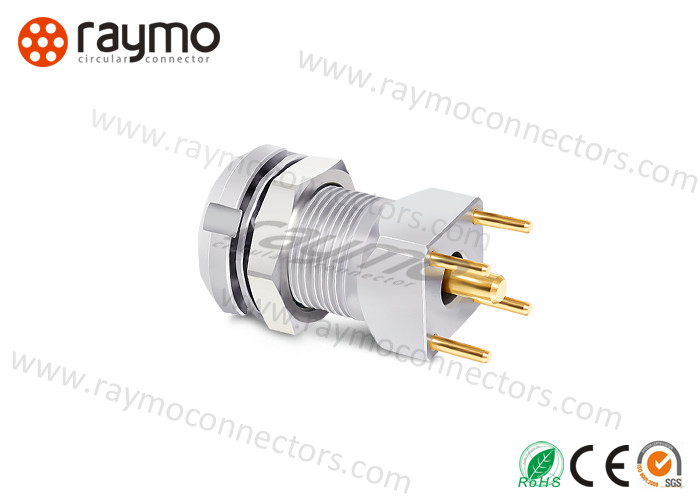

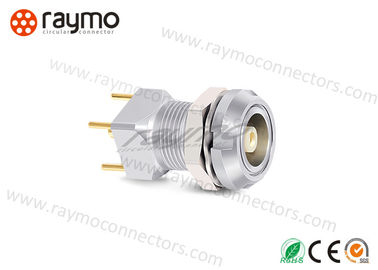

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type
Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: ISO:9001-2015
Nomor model: RM-EPE.00.250.ntn
Kuantitas min Order: 1 Piece/Pieces
Harga: negotiable
Kemasan rincian: Kantong Plastik & Karton
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, D/A, D/P, L/C, MoneyGram
Menyediakan kemampuan: 5000Potongan/Minggu
Hubungi sekarang
Nama prct: Konektor koaksial seri 00 Model: Soket tetap EPE dengan dua kacang untuk sirkuit cetak
Ukuran cangkang: 00 Nomor kontak.: Koaksial
isolator: PPS, Peek Jenis kelamin: laki-laki, perempuan
Warna shell: Krom hitam krom perak Peringkat IP: IP50
Jenis kontak: Jenis PCB sirkuit cetak Kabel yang dirakit atau tidak: Ya
Menyoroti:

pcb contacts connector

,

cable elbow connector


Prct Description

Circular push pull connector 00 Series NIM-CAMAC CD/N 549 type coaxial connector fixed socket with two nuts, for printed Circuit

Part No.:

EPE.00.250.NTN / RM-EPE-00-250KS

Prct Description:

00 Series NIM-CAMAC CD/N 549 type circular push pull connector coaxial connector fixed socket with two nuts, for printed Circuit





Half-moon type Push pull locking metal connector S-series connector, cable to cable connector, free socket, inline connector



Main Futures
1 Half-moon type Secure high performance push-pull Self-locking system
2 can be 100% compatible with original Lemo connector
3 Half-moon locking, coaxial locking
4 can plated with white or black chrome
5 Available solder and PCB or right angle PCB contact.
6 360° EMC shield
7 Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach





Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >96hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz],    > 40 dB [ at 1 GHz]
IP Rating IP 50 Endurance(shell) ≥5000 mating cycles



RM-S  FFA Cable Plug Prcts Photo:

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type 0

Our Company



RAYMO ELECTRONICS TECHNOLOGY LTD , established in 2010, located in shenzhen,China





RAYMO's high quality connectors are found in a variety of challenging applications and environments Applications

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Waterproof Circular Push Pull Connector 00 Series NIM - CAMAC CD / N 549 Type 1

Our Exhibition
2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair





Why Choose US?

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!



Label:

konektor siku kabel

konektor kontak pcb

Konektor Kabel ke Kabel
