Name: Waterproof Self Locking Connector , Miniature Cable Connectors Self Locking
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: RM-FSX-0C1C-P09JS
Price: 12.30 USD
Availability: InStock

Waterproof Self Locking Connector , Miniature Cable Connectors Self Locking

Informasi Dasar

Tempat asal:	Shenzhen, Cina
Nama merek:	RAYMO
Sertifikasi:	ROHS2.0, REACH, CE, SGS,, ISO9001:2015,
Nomor model:	RM-FSX-0C1C-P09JS

Kuantitas min Order:	1 pc
Harga:	negotiable
Kemasan rincian:	Tas PE + Karton
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	50000pcs Per Minggu

Hubungi sekarang

Ukuran cangkang:

Konektor kedap air 0c, 1c, ac, 2c

Seri:

Konektor miniatur AMC

aplikasi:

Militer, Mle Power

Bahan isolator:

PEEK, PPS

Jenis kelamin:

Pria dan wanita adalah avaialble

Pin:

2-16pins

Menyoroti:

mini coax connectors

mini electrical connectors

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen that is a leading companyin the design, manufacturing and distribution of high-performance connectors and cable assembly solutions.Known for their quality, ruggedness and excellent sealing, our prcts prove to be reliable in the most demanding environments.

Description of Connector:

AMC Waterproof Push-pull Self-locking Metal Connector, RM-C Series,7pins

Parts No.:	RM-FSX-0C1C-P09JS
straight plug, 0C series, key 1, multiple 7pins, outer shell in black, chrome -plated brass, PPS insulator, male solder contacts, IP68

Prct Technical Quick Details

RM-U Ultimate Series Short Staright Cable Plug
Shell size	0C,1C,AC,2C	Model	Straight plug FGX
Contact Type	Male, Female	Pins No.:	2,3,4,5,6,7,8,9,10,12,14,16,19,
MOQ	1pc	Sample	Free sample is available
Endurance(shell)	5,000 mating cycles	IP Level	IP68

Key Features

Miniature circular connector
Miniest circular connectors
Light weight
IP68 ranking
High corrosion resistance
5 different alignment keys and Polarized Keying System to avoid cross-interface
Hermetic receptacle structure can be suitable for equipment requiring air

Raymo high quality plastic connectors are found that can be widely used in below applications:

Medical, Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

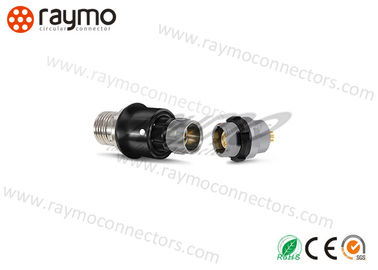

Cable to cable connector , RM-C FGX Connector Shell size and Dimension, Prcts Photo

100% Compatible with AMC series

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP68	Endurance(shell)	≥5000 mating cycles

Our Exhibition

2020.11	Electrnica Munich, Germany
2020.9	Testing Expo, Shanghai
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Why Choose US?

100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
