Name: HDMI 5.2-6.2mm Diameter Waterproof Power Connector Male Solder Contacts
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Fgg.0k.302.clad52z
Price: 8.99 USD
Availability: InStock

CABLE CIRCULAR CONNECTOR, LEMO FGG FPG 0K, 1K, 2K, 3K WATERPROOF CONNECTORS, FGG.0K.302.CLAD52Z

Description

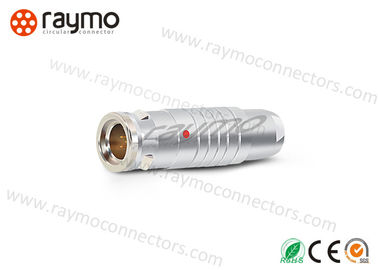

FGG.0K.302.CLAD52Z straight plug with key (G) and cable collet, 1K series, multipoles 2 contacts, outer shell innatural chrome-plated brass, PPS insulator, male solder contacts, collet for 5.2-6.2 mm diameter cable, with a black colour bend relief
Cable assemble with overmolding is an option
make with cable by overmoudling, like HMDI, DB9, D-SUB, RS232

Features

Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector
can be 100% compatible with original lemo connector
can be with different degree , such us 30, 45, 60, 90, 135,
can plated with white or black chrome,
360 angle screening for full EMC shielding.

Shell size and contacts for option

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-00	2	3	4
RM-0B	2	3	4	5	6	7	9
RM-1B	2	3	4	5	6	7	8	10	12	14	16
RM-2B	2	3	4	5	6	7	8	10	12	14	16	19
RM-3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4B	7	10	24

Application

Medical LIKE Diagnostic devices
Test & measurement LIKE Sensors
Transport LIKE Maritime
Defense & Security LIKE Target acquisition
Broadcast LIKE Studios and outside broadcasting
Energy LIKE Remote camera control
Extreme LIKE Nuclear

Company information

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.
Raymo technology offer a full ranfe of ruggrf self-latching push pull connectors used in a vatirety of demanding enviroments, Reasrch, Communications. Broadcast connector,Machines, Defense, Robotic, Aerospace, Public Sector, Information Systems, Motorsoirt, Miscellaneous applications. We can crosse Lemo Cariantions and size

RM-F Series FGG Shell type dimension and pictures

HDMI 5.2-6.2mm Diameter Waterproof Power Connector Male Solder Contacts 0

Why you need buy Raymo's compatible connector?

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time
Large stock,short lead time and easy to buy
We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Label:

Tempat asal:	Shenzhen, Cina
Nama merek:	RAYMO
Sertifikasi:	ISO:9001-2015, CE ,RoHS2.0, SGS, REACH
Nomor model:	Fgg.0k.302.clad52z

Kuantitas min Order:	1 Piece/Pieces
Harga:	negotiable
Kemasan rincian:	Kantong Plastik & Karton
Waktu pengiriman:	5-7 hari kerja
Syarat-syarat pembayaran:	Western Union, L/C, D/A, D/P, T/T
Menyediakan kemampuan:	5000 buah / minggu

Seri:	konektor melingkar tahan air	Ukuran cangkang:	0K
Nomor kontak.:	2, 3, 4, 5, 6, 7, 9	isolator:	PPS, Peek
Ketahanan:	5000 kali mendorong tarik	Moq:	1 pcs
Menyoroti:	outdoor electrical connector , waterproof cord connector
