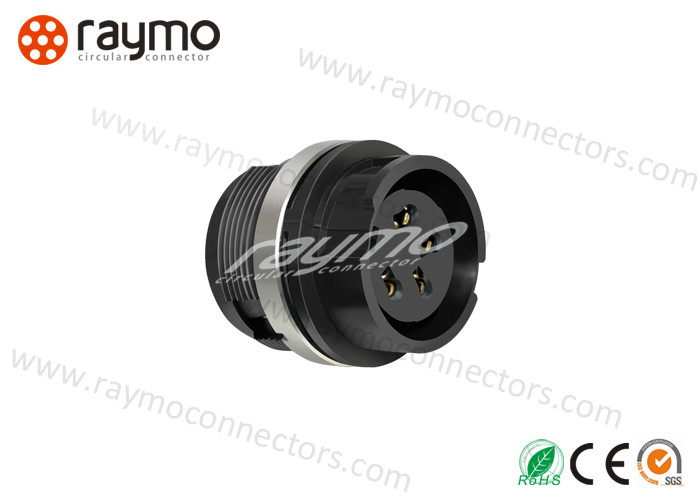

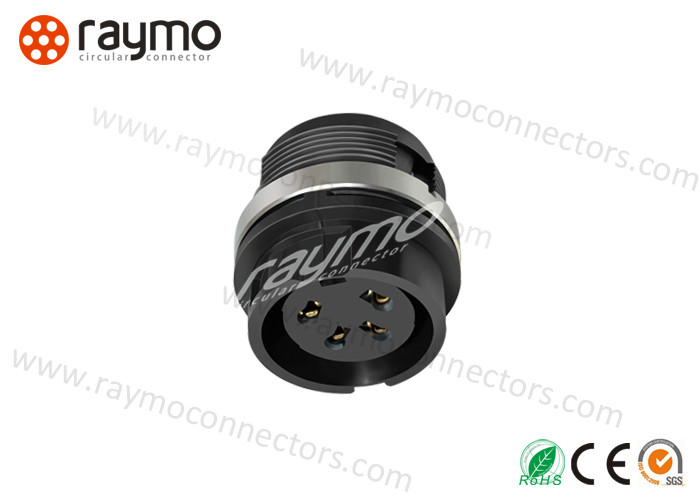

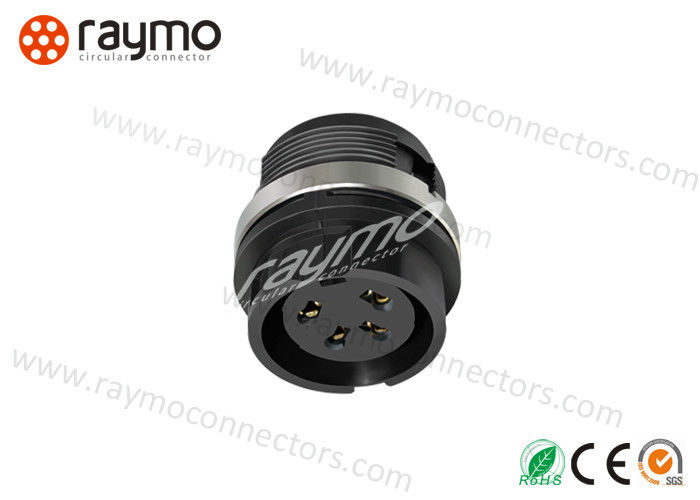

Binder Bayonet locking system Panel Mount Connectors 5pin female socket

Binder Bayonet locking system Panel Mount Connectors 5pin female socket
4pin female contact , shell in brass material with nickel plated
Used for high speed camera

Main Features

Screw-locking system
Cheap cost
fast delivery
lightweight construction ideal for miniature and portable devices
Long prct durability 500mating cycles guaranteed

Ordering code

Contacts	Ordering-No.	Raymo Part No.
2	99 0603 00 02	RM-EHG.M16.A02KS
3	99 0607 00 03	RM-EHG.M16.A03KS
4	99 0611 00 04	RM-EHG.M16.A04KS
5	99 0615 00 05	RM-EHG.M16.A05KS
6	99 0619 00 06	RM-EHG.M16.A06KS
7	99 0623 00 07	RM-EHG.M16.A07KS
7	99 0683 00 07	RM-EHG.M16.A07KS
8	99 0647 00 08	RM-EHG.M16.A08KS
12	99 0651 00 12	RM-EHG.M16.A12KS

Shell Material

Materials
Shell body	PA66
Insulating body	PBT
Contact pin	CuZn, silver-plated and flash goldplated (3-8 poles)
Sleeve	PC
Bend protection sleeve	TPE
Screw steel	Nickel-plated

Electrical data

Electrical data (at Tamb 20 °C)
Wire gauge	max, 0.75mm²(max. AWG 20) ( 3-8 poles)
Wire gauge	max, 025mm²(max. AWG 24) (12 poles )
Cable outlet	3-6mm/6-8mm
Mechanical opera	>500 ma
Upper temperature	+ 85 °C
Lower temperature	– 40 °C
Rated voltage	250 V (32 V) 2-4 poles
	60 V (32 V) 5 poles
	250 V (32 V) 6poles
	125V (32 V) 7poles
	60 V (32 V), 8-12poles
Rated impulse voltage	1500V 2-6poles
	800V 7 poles
	500V (32 V)8-12poles
Rated current (40 °C)	7A 2-3 poles
	6A 4-6 poles
	5A 7-8poles
	3A 12poles
Contact resistance	≤ 5 MΩ 3-8 poles
Contact resistance	≤ 3 mΩ 12poles

PHOTOS

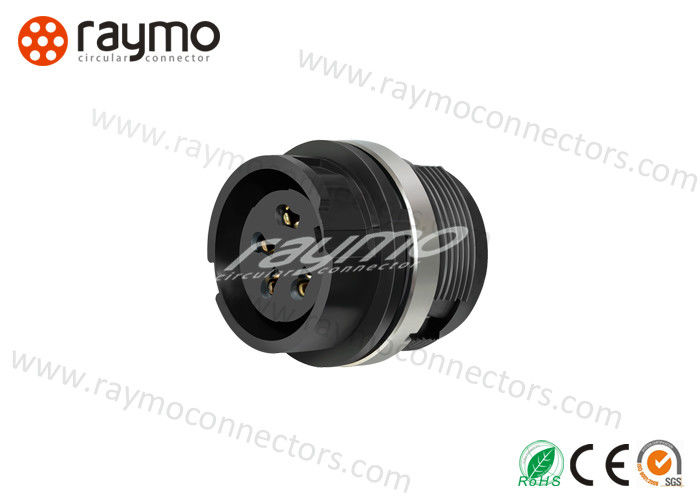

5 Pin Female Socket Circular Electrical Connectors Binder Bayonet Locking System 0

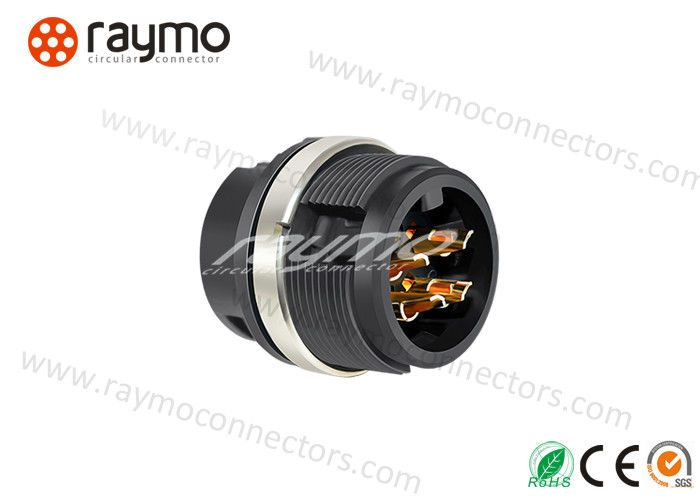

5 Pin Female Socket Circular Electrical Connectors Binder Bayonet Locking System 1

RAYMO Company Intrce

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.

Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system. Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.

RAYMO Prcts Applicaiton

Medical
Test & measurement
Transport
Defense & Security
Broadcast LIKE
Energy
Extreme

RAYMO Certificate

CE
ROHS2.0
ISO:9001-2015
Reach
SGS

FAQ

Q1. Raymo is factory or not? 100% Manufacturer located in SHENZHEN, CHINA
Q2. Do you test all your goods before delivery? Yes, we have 100% test before delivery.
Q3. What is your sample policy?We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. What is your terms of delivery? FOB SHENZHEN
Q5. How about your delivery time? Generally, it will take 5~7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you prce according to the samples? Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your terms of payment? T/T 100% or Paypal are both OK. But If your order is big, you can T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the prcts and packages before you pay the balance.
Q8. What is your terms of packing? Generally, we pack our goods in PE bag and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Label:

Tempat asal:	Shenzen, Guangdong, Cina
Nama merek:	RAYMO
Sertifikasi:	SGS RoHS2.0 CE Reach
Nomor model:	678 Seri M16 Connector

Kuantitas min Order:	1 Piece/Pieces
Harga:	negotiable
Kemasan rincian:	Kantong Plastik & Karton
Waktu pengiriman:	5-7 hari kerja
Syarat-syarat pembayaran:	T/T, D/A, D/P, L/C, Moneygram, Western Union
Menyediakan kemampuan:	5000Potongan/Minggu

Sistem Penguncian:	Sistem Penguncian Bayonet	Nama prct:	Konektor pemasangan panel
Ukuran cangkang:	678 konektor seri	Nomor kontak.:	Kontak wanita 4pin
Warna shell:	Warna Hitam	isolator:	PBT
Menyoroti:	threaded wire connectors , metal circular connector
