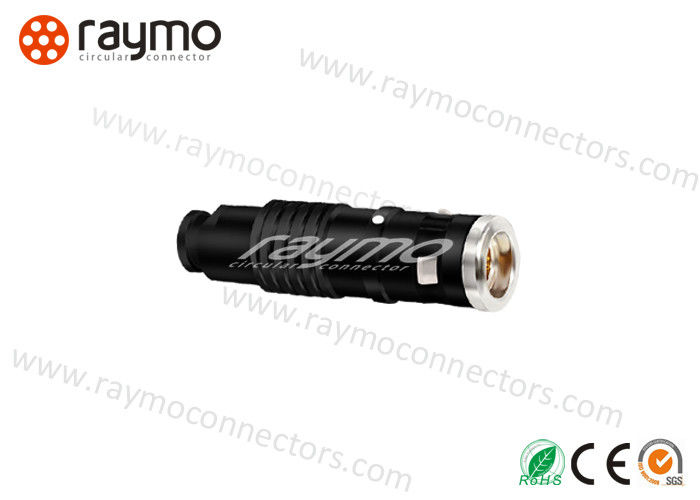

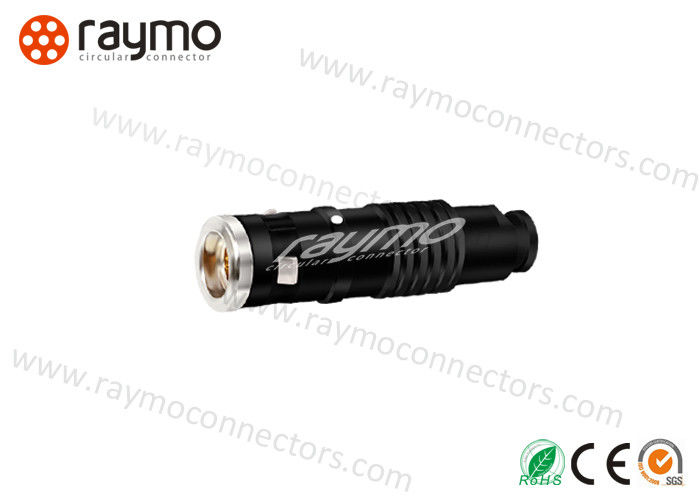

Name: Solar Energy Waterproof Power Connector , Watertight Electrical Connectors Straight
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Fgg.0k.305.klad52z
Price: 8.99 USD
Availability: InStock

K series Circular Waterproof Connector, FGG EEG connector for solar energy system connector, 0K, 1K, 2K, 3K

Description FGG.0K.305.kLAD52Z

IP68 Waterproof connector,
5 contacts, male solder contacts
PPS insulator
100% compatible with Original Lemo connector
Black shell in chrome palted brass

Features

multiple key options to avoid cross mating for connector alignment
high packing density for space savings
Secure Push-pull Self-locking system
multipole types 2 to 32 contacts
360° EMC shielding
solder, crimp or print (straight or elbow) contacts
rugged housing for extreme working conditions
watertight connection (IP 68/IP 66)

Technical Characteristics

Pulling and inserting times : ＞5000 times
Temperature range: - 40° C, +200° C
Humidity : Maximum humidity up to 95% at a temperature of 60 °
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance : 100 g [ 6 ms]
Salt Cpray Corrosion test: ＞96Hrs
Terminal Type: Soldering
Number of positions: 1-32pins
Fastensing Type: Push pull

Shell size and contacts for option

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-0K	2	3	4	5	6	7	9
RM-1K	2	3	4	5	6	7	8	10	12	14	16
RM-2K	2	3	4	5	6	7	8	10	12	14	16	19
RM-3K	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4K	7	10	24

Raymo Company information

Raymo technology offer a full ranfe of ruggrf self-latching push pull connectors used in a vatirety of demanding enviroments, Reasrch, Communications. Broadcast connector,Machines, Defense, Robotic, Aerospace, Public Sector, Information Systems, Motorsoirt, Miscellaneous applications. We can crosse Lemo Cariantions and size

Application

Medical LIKE Diagnostic devices
Defense & Security like Communication systems
Broadcast like TV and motion picture
Test & measurement LIKE Sensors
Transport LIKE Maritime
Energy LIKE Remote camera control
Extreme LIKE Nuclear

Solar Energy Waterproof Power Connector , Watertight Electrical Connectors Straight 0

RM-K Series FGG Shell type dimension and pictures

Solar Energy Waterproof Power Connector , Watertight Electrical Connectors Straight 1

Exhibition

2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair

Our Service

Sample policy: Free sample & sample order are accepted
High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts
OEM & ODM: OEM & ODM services are welcome
Fast delivery: 3~5 working days after receiving payment for normal connectors
Fast Respond: within 24 hours for your inquiry and any other questions
After-sale Service: Follow up your shipment. Provide professional solutions for your questions

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Label:

Tempat asal:	Shenzhen, Cina
Nama merek:	RAYMO
Sertifikasi:	CE, RoHS2.0, SGS, REACH, ISO:9001-2015
Nomor model:	Fgg.0k.305.klad52z

Kuantitas min Order:	1 Piece/Pieces
Harga:	negotiable
Kemasan rincian:	Kantong Plastik & Karton
Waktu pengiriman:	5-7 hari kerja
Syarat-syarat pembayaran:	Serikat Barat, L/C, D/A, D/P, T/T, MoneyGram
Menyediakan kemampuan:	5000 buah / minggu

aplikasi:	Sistem komunikasi	Nomor Kontak.:	2, 3, 4, 5, 6, 7, 9
Ukuran cangkang:	0K, 1K, 2K, 3K	isolator:	PPS, Peek
Warna shell:	warna hitam	Siklus hidup:	5000 kali mendorong tarik
Menyoroti:	outdoor electrical connector , waterproof cord connector
