Rumah ProdukKonektor setengah bulanCompatible Mini Female Half Moon Connector CE Certification Effective Communication

Compatible Mini Female Half Moon Connector CE Certification Effective Communication

Compatible Mini Female Half Moon Connector CE Certification Effective Communication
Compatible Mini Female Half Moon Connector CE Certification Effective Communication Compatible Mini Female Half Moon Connector CE Certification Effective Communication Compatible Mini Female Half Moon Connector CE Certification Effective Communication
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: SGS, RoHS2.0, ISO:9001-2015, CE, REACH
Nomor model: Era.00.250.cll
Kuantitas min Order: 5 potong/potong
Harga: negotiable
Kemasan rincian: Kantong Plastik & Karton
Waktu pengiriman: 5-7WDS
Syarat-syarat pembayaran: Western Union, L/C, D/A, D/P, T/T
Menyediakan kemampuan: 5000Potongan/Minggu
Hubungi sekarang
Jenis: Soket panel ERA Ukuran cangkang: 00s, 0s, 1s, 2s
Kontak: Pin koaksial, 50ohm Jenis kelamin: Kontak Wanita
isolator: PPS, Peek tersedia Peringkat IP: IP50
Menyoroti:

cable elbow connector

,

cable to cable connector

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector



RAYMO Factory Intrce





RAYMO Provided Service for YOU



Description
RAYMO PART NO LEMO PART NO
RM-ERA-00S-250-KS ERA.00.250.CLL





Shell Size and Contact No.



Shell size Contacts no. ( Both with Solder & PCB type )
00S 1(coaxial) 　 　 　 　 　
0S 1(coaxial) 2 3 4 　 　
1S 1(coaxial) 2 3 4 5 6







Features







Technical Characteristics



Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 50 Endurance(shell) 5000 mating cycles




Applications



  1.  Medical
  2. Test & measurement
  3. Transport
  4. Defense & Security
  5. Broadcast
  6. Energy

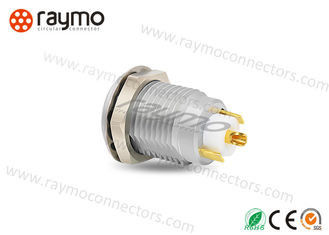

Pictures and Dimension

Compatible Mini Female Half Moon Connector CE Certification Effective Communication 0



Why choose us
  • 8 years focus on connectors
  • Save your costs at least 50%
  • professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
  • customized your own connectors according to your requirement
  • Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
  • Help customers to make model selection : Just e-mail us and give the prtion information
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF  and others ways according the your needs.
  3. How transport?  Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.
