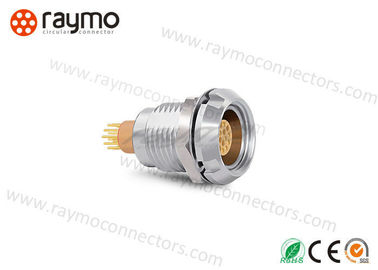

Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection

Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection
Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection Raymo B Series Miniature Circular Connectors Optimized Straight 2 Ways Thread Connection
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Nomor model: EKG.1B.302.CLN
Kuantitas min Order: 5 potong/potong
Harga: negotiable
Kemasan rincian: Kantong Plastik & Karton
Waktu pengiriman: 5-7WDS
Syarat-syarat pembayaran: Western Union, L/C, D/A, D/P, T/T
Menyediakan kemampuan: 5000Potongan/Minggu
Hubungi sekarang
Jenis: Konektor melingkar miniatur Nomor kontak.: 2 Way, 2,3,4,5,6, 7, 9pins juga tersedia
isolator: PPS/PEEK Peringkat IP: IP50
Ketahanan: 5000 kali mendorong tarik Tipe konektor: Kontak pengelasan/PCB lurus dan siku
Menyoroti:

mini electrical connectors

,

miniature electrical connectors

2 Ways Miniature Circular Connector, Raymo B Series Industry Camera Push Pull Connector ECG.1B.302.CLN



Company intrce



Descriotipn of goods



RAYMO P/N

Lemo P/N

P/N

RM-ECG-1BC-302-KP

ECG.1B.302.CLN

G51L0C-P02



Shell Size and Contacts



hell size Contacts no. ( Both with Solder & PCB type )
00 2 3 4 　 　 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 　 　 　
3B 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
4B 7 10 24 　 　 　 　 　 　 　 　 　 　 　 　



Technical Characteristics

Technical Characteristics

Temperature Range

- 40° C, +125° C

Resistance to vibrations

15 g [10 Hz - 2000 Hz]

Shell Material

Brass with chrome plated

Humidity

up to 95% at 60° C/140F

Shock Resistance

100 g [ 6 ms]

Salt spray corrosion test

>144hr

Climatical Category

50/175/21

Shielding (min)

> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]

IP Rating

IP50

Endurance(shell)

5000 mating cycles





Connectors challenging applications and environments including
  • Automotive
  • Audio-video
  • Aviation
  • Communications Industrial Control
  • Information Systems
  • Machines, Medical, Military, Test and Measurement
  • Data Acquisition
Why choose us
  • 100% compatible lemo connector
  • Help you save at least 50% cost
  • Cable assembly offer,help you save prction time



FAQ


1.Can I order a small list ?
Raymo:Of course, you can.
2.What quote do you offer?
Raymo:FOB , CIF and others ways according the your needs.
3.How transport?
Raymo:Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
Raymo:Certainly,you can contact us at any time.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
