Rumah ProdukKonektor M12360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors

360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors

360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors
360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors
360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors 360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Nomor model: FGG EGG EKG
Kuantitas min Order: 1 buah
Harga: negotiable
Kemasan rincian: 100pc/ctn
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: Western Union, T/T, D/P, D/A, L/C, MoneyGram
Menyediakan kemampuan: 5000 pcs/minggu
Hubungi sekarang
Nama prct: Dorong Tarik Konektor Listrik Jenis: soket plug wanita jantan
Ukuran cangkang: 6.4-19mm Nomor kontak.: 2-30 pin
Terminal: Solder/cetak/crimp Peringkat IP: IP50/IP68
Menyoroti:

360° EMC Metal Circular Connectors

,

19mm Shell Metal Circular Connectors

,

IP68 30 Pin Circular Connectors

testing instrument measurement equipment electrical connector and cable, metal circular connectors

100% compatible with LEMO/Fischer/Hirose original



EGG.0B.305.CLL = RM-EGG-0BC-305-KS .Fixed receptacle with one screw nuts, nut fixing, with key(G), 0B series, multipole 5 contacts, outer shell in natural chrome natural-plated brass, PPS insulator, female solder contacts, IP50.



RAYMO is a manufacturer that:

• Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly.
• Can be 100% compatible with original
• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16,RM-U,RM-V BNC, B680,B423 , 38999, 26482

• OEM are acceptable
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
• All the items can work normally after 5000 times mating

 With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.

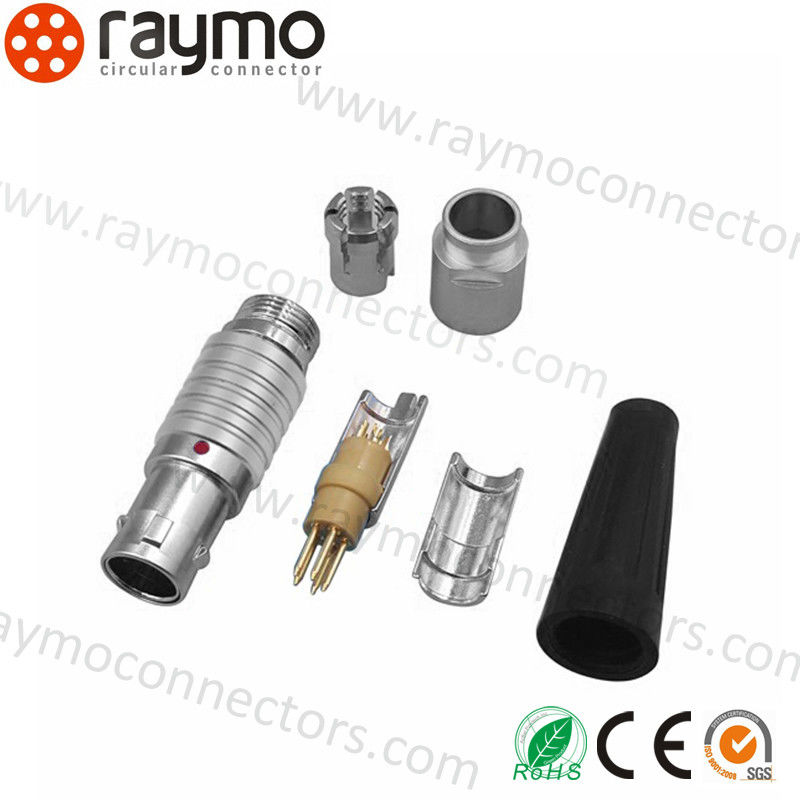

RM-B series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors 0
00 2 3 4 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 26
3B 3 4 7 8 10 12 14 16 18 21 30 　 　



0(G) 30(A) 60(B) 45(J) 　 　 　 　 　 　 　 　
0(G) 30(A) 60(B) 90(.C) 135(D) 145(E) 155(F) 　 45(J) 70(K) 80(L) 110(M)
0(G) 30(A) 60(B) 90(.C) 135(D) 145(E) 155(F) 150(I) 45(J) 70(K) 80(L) 　
0(G) 30(A) 45(B) 60(.C) 95(D) 120(E) 145(F) 　 37.5(J) 52.5(K) 70(L) 　
0(G) 30(A) 45(B) 60(.C) 95(D) 120(E) 145(F) 　 37.5(J) 52.5(K) 70(L) 　
Applications
RAYMO connectors have been widely used in the areas of :
  • telecommunication,
  • electronics,
  • medical equipments,
  • aviation,
  • audio-video,
  • petroleum,
  • motor and power industries,
  • electrical signal connection,
  • IC control systems,
  • test and measurement instruments, ect.

Label:

Konektor Sensor Kedap Air Sirkular M12

Konektor Panel Mount M12 Miniatur

IP67 M12 Panel Mount Connector
