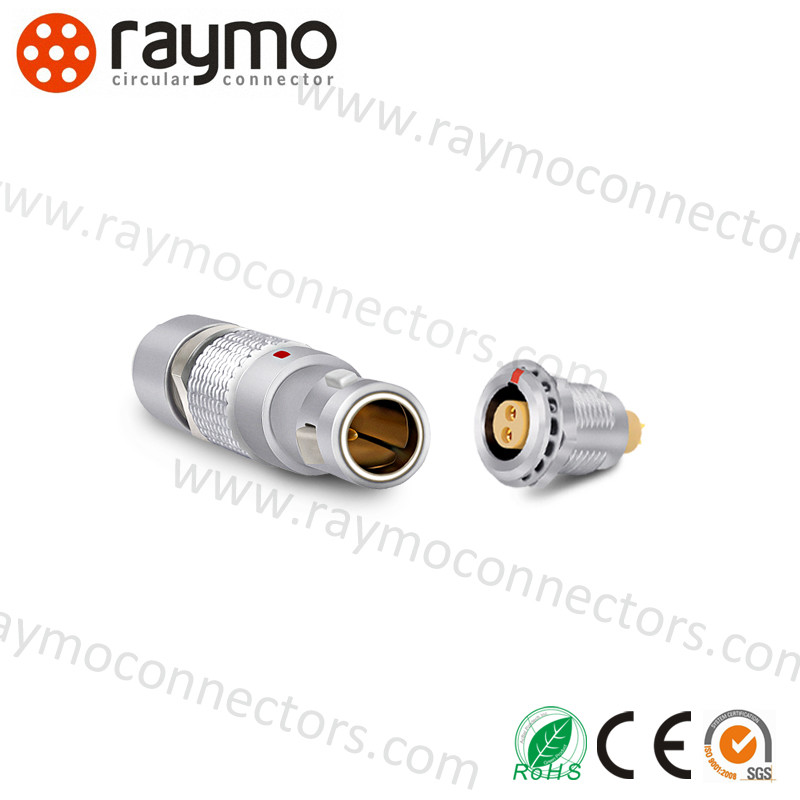

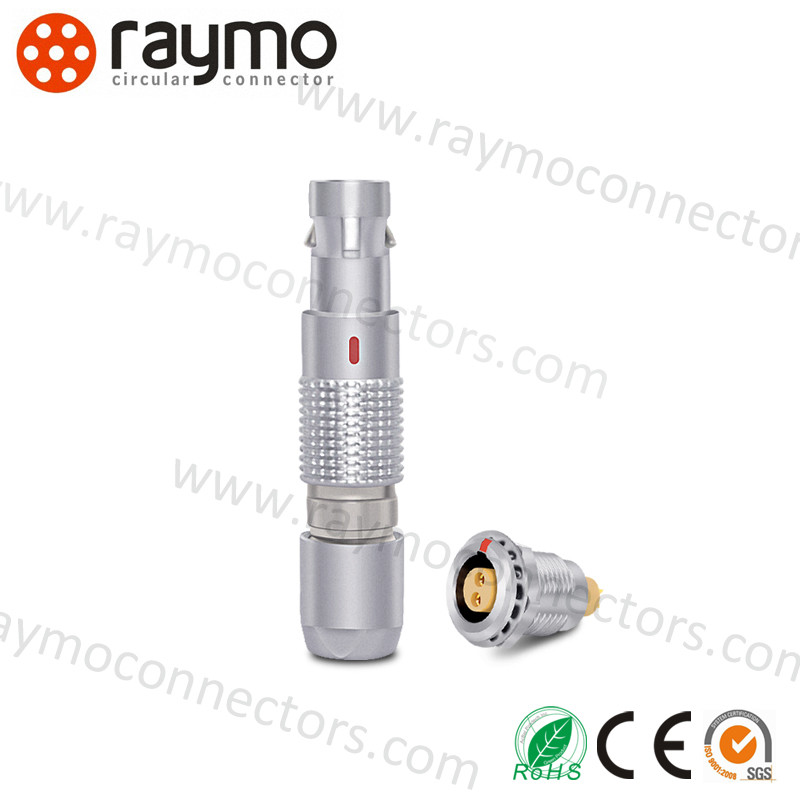

2pin Fgg 00b Series Metal Circular Male and Female Push Pull conector Audio Video Cable Connector
RAYMO metal circular male and female push pull audio vedio cable connector 2pin FGG 00B series
Model no: RM-FGG-00B-302-CLAD65
Description: raymo RM-B series straight plug, male contact , 2pin, 35cable collet one key, 0 degree
Shell size and Contact no we do have:
| Series |
Shell size |
Contacts no. With Solder & PCB type |
| B -1P 50 |
00 |
2 |
3 |
4 |
|
|
|
|
|
|
|
|
|
|
| 0B |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
|
|
|
|
|
|
| 1B |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
|
|
| 2B |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
19 |
26 |
| 3B |
3 |
4 |
7 |
8 |
10 |
12 |
14 |
16 |
18 |
21 |
30 |
|
|
ADVANAGES
- Free cable solutions
- 100% compatible lemo connector
- OEM or ODM accepted
- Help you save at least 50% cost, Bend relief of plug are free
- Cable assembly offer
- Free sample for confirmation
- Fast delivery time to help you save prction time
RAYMO is a manufactuer that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISCHERS • S • HIROSES • BINDERS •Military 38999
• Series has B, K, S, L, F, HR10A, P, M4, M12, M15, BNC, B680, B423 , 38999, 26482
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2008, SGA Audited manufacturer
• All the items can work normally after 5000times mating
Application
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
Alignment Keys
DIY cable assembly process:
Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly Hitch the sleeve to the corresponding step of collet nut.
