Name: C5-S5 Ultrasonic Probes Cables 0.5m Circular Push Pull Connectors
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: Ffa.00.250 + subvis jantan
Price: 16.00 USD
Availability: InStock

C5-S5 Ultrasonic Probes Cables 0.5m Circular Push Pull Connectors

Informasi Dasar

Tempat asal:	Shenzhen, Cina
Nama merek:	RAYMO
Sertifikasi:	SGS, REACH, RoHS2.0, ISO:9001-2015, CE
Nomor model:	Ffa.00.250 + subvis jantan

Kuantitas min Order:	5 potong/potong
Harga:	12USD~20USD/PCS
Kemasan rincian:	Kantong Plastik & Karton
Waktu pengiriman:	5-7WDS
Syarat-syarat pembayaran:	Western Union, L/C, D/A, D/P, T/T
Menyediakan kemampuan:	5000Potongan/Minggu

Hubungi sekarang

Keterangan:

Kabel koaksial konektor tarik dorongan melingkar

Panjang kabel:

0,5 meter (menurut kebutuhan nyata pelanggan)

Warna shell:

Kuningan berlapis krom alami

Peringkat IP:

IP50

aplikasi:

Probe ultrasonik C5-S5

Siklus hidup:

5000 kali mendorong tarik

Sertifikat:

CE/ROHS/REACH/ISO9001/SGS

Waktu tunggu:

3-5 hari kerja

Menyoroti:

0.5m Circular Push Pull Connectors

RoHS2.0 Circular Push Pull Connectors

Ultrasonic Probes Cables Circular Connectors

C5-S5 Ultrasonic Probes Cables Single 00s Circular Push Pull Connectors To Subvis

Parts Description

FFA.00.250 + Subvis male

FFA coaxial circular push pull connector to Subvis

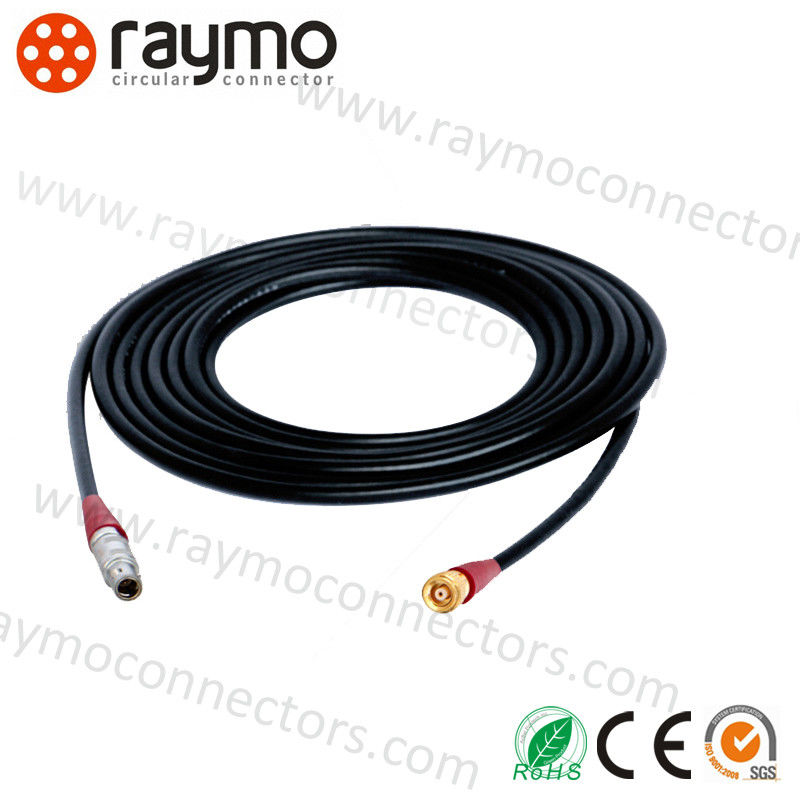

This cable is used for Ultrasonic probes, its assemblied with 2 pcs 00s coaxial connector ,

00S FFA to Subvis, cable length is 1M, can be customized

Main Features of ECG panle circular connector

1. Push pull locking metal connector, cable to cable connector, free socket, inline connector

2. can be 100% compatible with original connector

3. can plated with white or black chrome

4. 360 angle screening for full EMC shielding

5. ISO:9001-2015 CE RoHS2.0 SGS REACH

Technical Characteristics of Metal Circuar push pull connector

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

RAYMO Circular Connector :

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof

Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts.

Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to

the very end. Our factory has gained ISO9001, If you are searching for waterproof connector metal fast lock,

please feel free to contact us.

RFQ:

Q1. Can I have a sample ?

Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be

paid in advance and the cost will be refund after further order.

Q2. What about the prction lead time?

We have stock, fast delivery below 5,000 pieces.

Q3. How do you ship the goods and how long does it take to arrive?

We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.

Q4. Is it OEM available?

Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take

about 20 to 30 days for new prct from mold design to final prction.
