FGG 4 Pins SGS Circular Push Pull Connectors Metal Medical Device

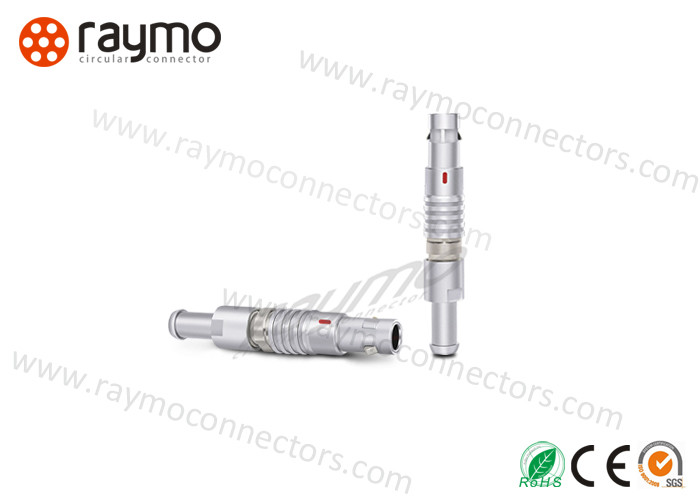

FGG.00B cable plug connector 4 pins metal medical device push pull
1. FGG.00B push pull connector Prct Description:
RAYMO RM-FGG-00B-304-JS32Z can 100% compatible with Lemo original FGG.00B.304.CLAD32Z, customer choose our connector as it's high quality, competitive price, fast delivery, and fast respond after-sales service.
RM-B Series offers a mlar, ergonomic, rugged and reliable circular multipole connector for applications needing quick and secure Push-Pull latching. Making it an ideal choice for test and measurement, instrumentation, medical devices, research and audio/video applications.
2. FGG.00B push pull connector metal circular push pull connector with below features:
Secure high performance push-pull self-locking system
High pin density contributing to equipment miniaturization
Shell size 00B
Contacts from 2-4pins
Alignment Key and Polarized Keying System to avoid cross-interface
360° EMC shielding
Robust and shock resistant designs
3. FGG.00B push pull connector techinical characteristics
| Temperature Range |
-55°C, +250°C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hrs |
| Climatical Category |
50/175/21 |
Humidity |
Up to 95% at 60°C |
| IP Rating |
IP50 |
Certifications |
ISO9001/ CE/ ROHS2.0/ SGS |
4. FGG.00B push pull connector Application
•Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
•Medical equipments like Disposable equipment
•Test & measurement like Data acquisition
•Broadcast, like HD and SD cameras
•Energy, like Renewable energies
•Extreme, such as Sailboat racing
