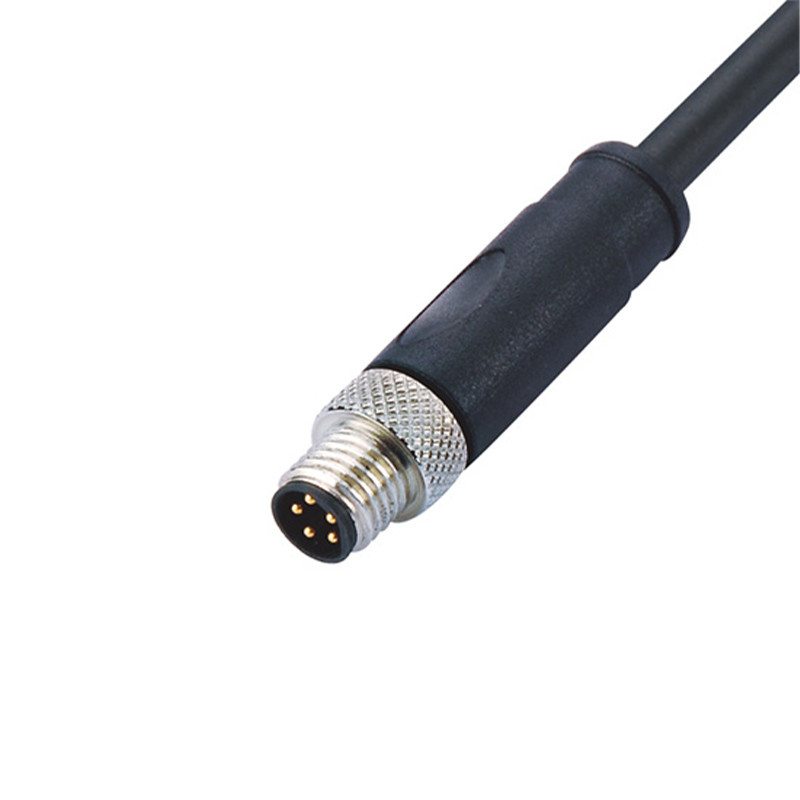

3 Pins Miniature Circular Connectors Screw Thread M8 Cable Connector

3 Pins Miniature Circular Connectors Screw Thread M8 Cable Connector
3 Pins Miniature Circular Connectors Screw Thread M8 Cable Connector
3 Pins Miniature Circular Connectors Screw Thread M8 Cable Connector 3 Pins Miniature Circular Connectors Screw Thread M8 Cable Connector
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Nomor model: RM-M8-3
Kuantitas min Order: 1 buah
Harga: negotiable
Kemasan rincian: 100pc/ctn
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Menyediakan kemampuan: 5000 pcs/minggu
Hubungi sekarang
Nama prct: Sekrup benang konektor tahan air Jumlah kontak: 3 pin
Jenis pemasangan: Pemasangan Kabel Metode Pemutusan: Pateri
Hubungi Jenis Kelamin: pria Peringkat IP: IP67
Peringkat saat ini: 3a Orientasi Tubuh: Lurus
Menyoroti:

3 Pins Miniature Circular Connectors

,

M8 Miniature Circular Connectors

,

Screw Thread M8 Cable Connector

Description for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor



The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.





Specification for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor



Prct attribute Attribute Value
Manufacturer RAYMO
Prct name Circular screw waterproof connectors
Connector size M5,M8,M12,M16
Contact Gender Pin(Male), pole(female)
Number of contacts 3-8 contacts
Mounting Style Straight/Elbow
Termination Style Solder/print/PCB
Current Rating 1.5-3A
IP Rating IP67
Application Sensors, Actuators
Shell Material (1) Connector material: Plastic PA+GF
(2) M8 male to female molded cable
(3) Contacts:Brass, Gold Plated
(4) Cable material: PVC/TPU
Wire Gauge 24-28AWG
Certifications ISO9001/ CE/ ROHS2.0/ SGS
Temperature Range -25°C, +80°C

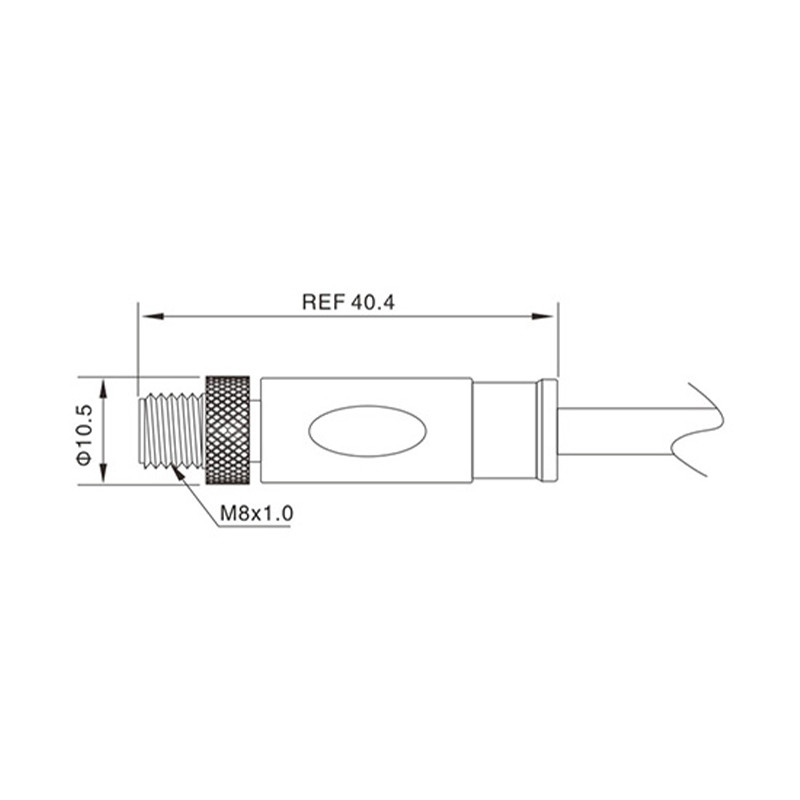

Electrical data & Mechanical data for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor



Contacts Rated current Voltage Wire gauge/size
A/C D/C mm2 AWG
3 pins 3A 50V 60V 0.25 24
4 pins 3A 50V 60V 0.25 24
5 pins 3A 30V 30V 0.25 24
6 pins 1.5A 30V 30V 0.14 26
8 pins 1.5A 30V 30V 0.14 26



Features for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor



Application for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor



Our advantage for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor



IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
