Rumah ProdukKonektor M12Sensor Actuators M8 Right Angle Connector Elbow Plug M8 3 Pin Connector

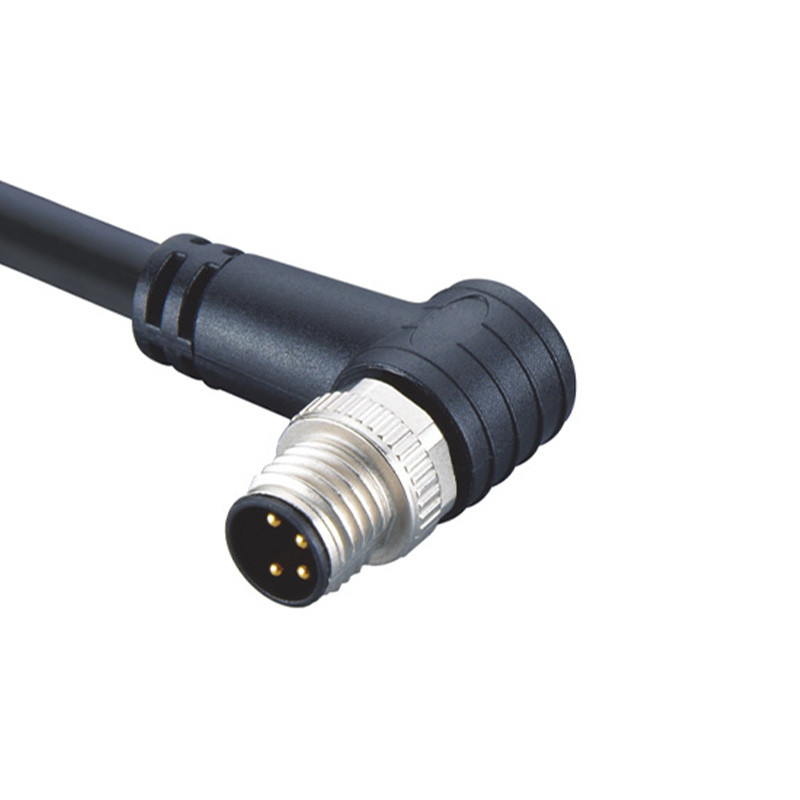

Sensor Actuators M8 Right Angle Connector Elbow Plug M8 3 Pin Connector

Sensor Actuators M8 Right Angle Connector Elbow Plug M8 3 Pin Connector
Sensor Actuators M8 Right Angle Connector Elbow Plug M8 3 Pin Connector
Sensor Actuators M8 Right Angle Connector Elbow Plug M8 3 Pin Connector Sensor Actuators M8 Right Angle Connector Elbow Plug M8 3 Pin Connector
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Nomor model: RM-M8-3P
Kuantitas min Order: 1 buah
Harga: negotiable
Kemasan rincian: 100pc/ctn
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Menyediakan kemampuan: 5000 pcs/minggu
Hubungi sekarang
Nama prct: M8 Waterproof Connector Jumlah kontak: 3 pin
Jenis pemasangan: Pemasangan Kabel Metode Pemutusan: Pateri
Hubungi Jenis Kelamin: pria Peringkat IP: IP67
Peringkat saat ini: 3a Orientasi Tubuh: Sudut/siku kanan
Menyoroti:

Actuators M8 Right Angle Connector

,

Sensor M8 Right Angle Connector

,

Elbow Plug M8 3 Pin Connector

Description for mini circular right angle elbow plug M8 3 pins connector for Sensor



The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.





Specification for mini circular right angle elbow plug M8 3 pins connector for Sensor



Prct attribute Attribute Value
Manufacturer RAYMO
Prct name Circular screw waterproof connectors
Connector size M8
Contact Gender Pin(Male), pole(female)
Number of contacts 3-8 contacts
Mounting Style Elbow
Termination Style Solder
Current Rating 1.5-3A
IP Rating IP67
Application Sensors, Actuators
Shell Material (1) Connector material: Plastic PA+GF
(2) M8 male to female molded cable
(3) Contacts:Brass, Gold Plated
(4) Cable material: PVC/TPU
Wire Gauge 24-28AWG
Certifications ISO9001/ CE/ ROHS2.0/ SGS
Temperature Range -25°C, +80°C





Electrical data & Mechanical data for mini circular right angle elbow plug M8 3 pins connector for Sensor



Contacts Rated current Voltage Wire gauge/size
A/C D/C mm2 AWG
3 pins 3A 50V 60V 0.25 24
4 pins 3A 50V 60V 0.25 24
5 pins 3A 30V 30V 0.25 24
6 pins 1.5A 30V 30V 0.14 26
8 pins 1.5A 30V 30V 0.14 26



Features for mini circular right angle elbow plug M8 3 pins connector for Sensor



Application for mini circular right angle elbow plug M8 3 pins connector for Sensor



RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, etc



Our advantage for mini circular right angle elbow plug M8 3 pins connector for Sensor



mini circular right angle elbow plug M8 3 pins connector for Sensor
