PPS Insulator HEG HGG Circular Cable Connectors 2B Panel 2 Pin

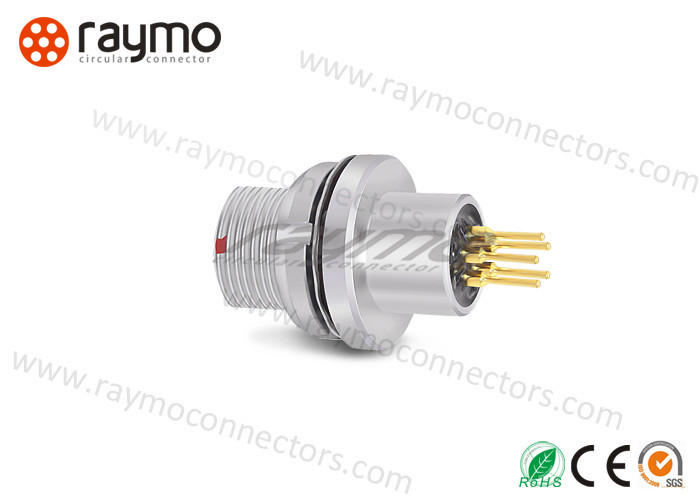

HEG HGG 0B 1B 2B Panle Metal Socket Circular Push Pull Connector
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
7. Protection index (mated) :IP50
RM-B series circular connectors provide the following main features:
1. Security of the Push-Pull self-latching system
2. Multiple key options to avoid cross mating
3. keying system («G» key standard)of similar connectors for connector alignment
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 46 contacts
6. Solder, print contacts (straight or elbow)
7. High packing density for space savings
RM-B series Shell size and Contacts of circular push pull connector
|
00B
|
2pins 3pins 4pins
|
|
0B
|
2pins 3pins 4pins 5pins 6pins 7pins 9pins
|
|
1B
|
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16
|
|
2B
|
2pins 3pins 4pins 5pins 6pins 7pins 8pins 10pins 12pins 14pins 16pins 18pins 19pins 26
|
|
3B
|
3pins 4pins 7pins 8pins 10pins 12pins 14pins 16pins 18pins 21pins 30pins
|
Industry Application:
It is widely used on all kinds of medical equipments, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications prct line.
Company of Raymo:
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing
on manufacturing Creative customer-oriented metal and plastic circular push pull self latching connectors and
cable assemblies to serve over 75 countries and regions since 2010.
