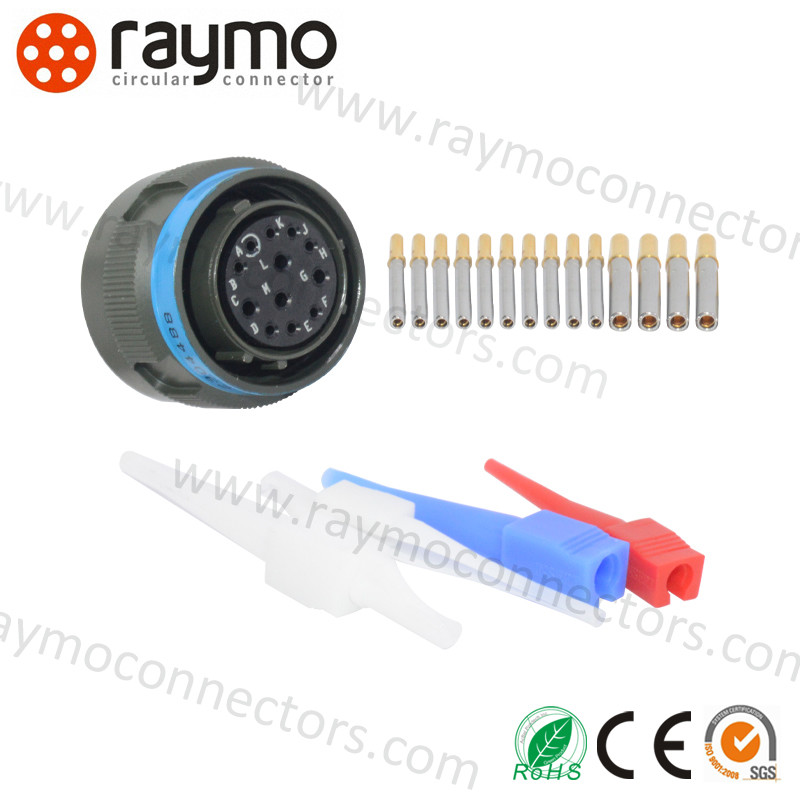

Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors

Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Nomor model: JY27467T09F35PNH
Kuantitas min Order: 1 buah
Harga: negotiable
Kemasan rincian: 50pc/ctn
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Menyediakan kemampuan: 500 BUAH/MINGGU
Hubungi sekarang
Nama prct: Konektor Lingkaran Militer Ukuran perumahan: 09
Pelapisan perumahan: Pelapisan nikel tanpa listrik Ukuran Kontak: 6-22d
Jenis pemasangan: Pemasangan Kabel Metode Pemutusan: Pateri
Hubungi Jenis Kelamin: pria Peringkat IP: IP68
Menyoroti:

JY27467T09F35PNH Military Circular Connectors

,

Amphenol Military Circular Connectors

,

MIL-DTL-38999 Military Circular Connectors

Description for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors



GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..



[Part number example]





JY27467T25E35SN-H JY series plug, threaded shell end, can be mounted with accessory, 25# shell, stainless steel passive plating, 35# layout, filled with sockets, N polarization, soldering contacts.





Specification for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors



Prct attribute Attribute Value
Manufacturer RAYMO
Prct name Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Model JY27467T09F35PNH
Contact Gender pin(male)
Contacts 6-22D
Body size 09
Terminal Solder
Housing plating electroless nickel plating
IP Rating IP68
Application military systems such as aviation, aerospace, weapon, and other electronic equipment systems





Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors



Housing Aluminum alloy/stainless steel
Plating

B class: olive green cadmium plating

E class: stainless steel passive

F class: electroness nickel plating
Insulator Thermoset plastic
Grommet and seal Silicon rubber
Contact

Gold-plated copper alloy, crimping,

soldering, PCB
Endurance 500 cycles
Vibration

Sinusoid vibration: frequency 10-2000Hz,

acceleration: 294m/s2

Random vibration: frequency 100-1000Hz,

power spectral density: 1g2/Hz
Shock At 3 ms half sinusoid, peak value
Operating temperature

B class: -65℃～+175℃

E, F class: -65℃～+200℃
Salt spray

According to method 1001 GJB1217

B class 500h, E class 1000h

F class 48h
Relative humidity 98% at 40℃
Operating height ≤30480m



Features for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors







Application for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors



Military systems such as





Our advantage for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors

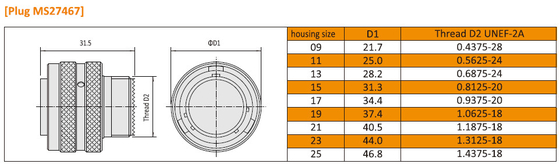

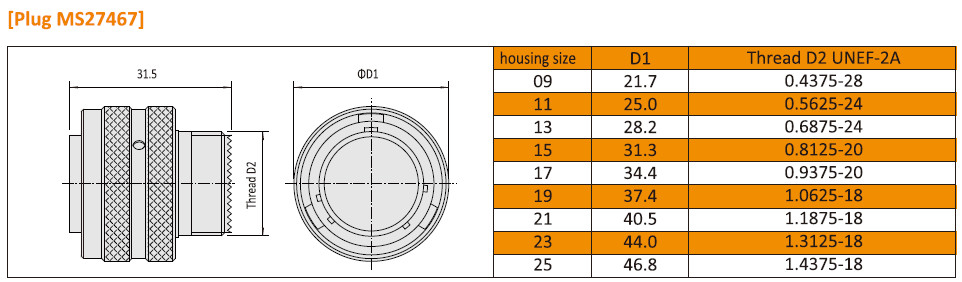

Dimention for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors

Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors 0



Raymo also do:


  • O D U_AMC easy clean Connectors
  • Mini connector HIROSE connectors
  • Cable connector Binders M16 680 678 420 series connectors
  • Circular screw fixed M8 M12 connectors
  • CABLE ASSEMBLY can be designed according customer real needs.Accept OEM
