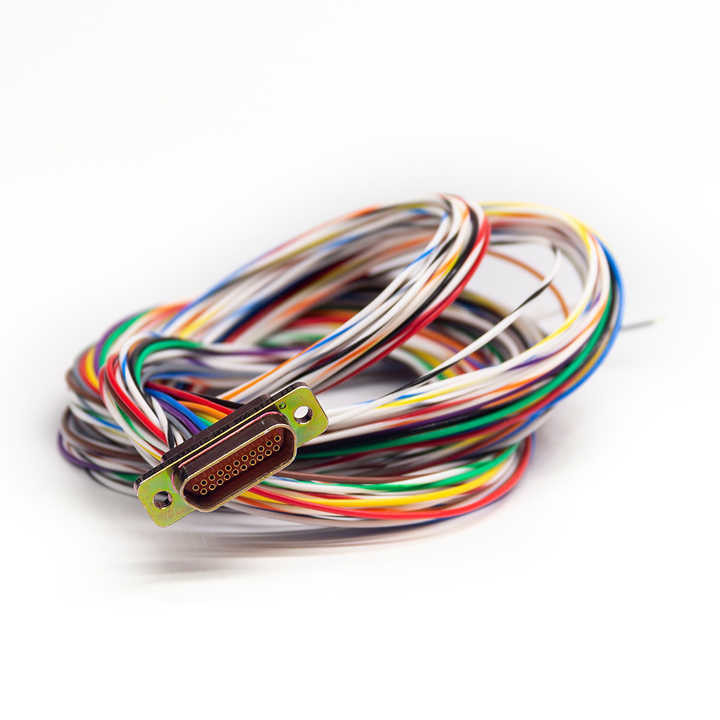

ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector Description
Raymo J30J series is engineered with a strong yet lightweight aluminum shell and a high-relabill y twist pin contact system with Pos-Aine Aignment.
It is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector main features:
-
This series is equivalent to USA MDM series;
-
Nine types :9, 15, 21, 25, 31, 37, 51, 74, 100;
-
Mated wire section area: 0.1～15 mm2;
-
This series employs high-density flexible pins;
-
The locking subassemblies are offered with the connectors according to your order. You should give me information in the papers, if you do not need the locking subassemblies.
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector Parameter
|
Category
|
ITT Cannon MDM series micro-D connectors
|
|
Part number
|
J30J-31TJ
|
|
Connector Type
|
Plug
|
|
Orientation
|
Hermetic Square flange
|
|
Contact Type
|
Male Pin
|
|
Number of Positions
|
25
|
|
Mounting Type
|
Panel Mount
|
|
Contact Termination
|
Solder
|
|
Protection Rating
|
IP67
|
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector tecnical performance
|
Test Voltage
|
600 Vac a t son level
150 Vac at 70,000 feet (23410 meters)
|
|
Current Rating
|
3 Ampo
|
|
Contact Resistance
|
’8 milliohms maximum at 3 amps
10 milliohns maximum at 1 milliamp:ML-STD-202 Method 307
|
|
Insulation Resistance
|
5000 megaohms minimum at 500 Vdo
|
|
Magnetic Permeability
|
2.0μ(connectors less hardware)
|
|
Thermal Vacuum
|
per NASA SP-R-0022(space class only)
|
|
Mating Life
|
500 cycles minimum
|
|
Salt Spray
|
48 hours ML-STD-1344 Method 1001 Condition B
|
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector pictures
ITT Cannon MDM Series J30J-25TJ 25pin Male Plug Micro-D Connectors Miniature Connector Application
* Navigation systems
* Research centers
* Medical Equipment
* Hand Held Test Equipment
*Satellites
* Robotics
*Geophysical Equipment
* Bar Code Scanners
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED
As a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.
Our Service
-D38999 I seires/ III series waterproof aviation circular connectors
--Russian 2РМДТ, ОНЦ-БС, 2РТТ, РБМ4, СНЦ23, 2РМТ connectors
--Push pull connector LE-MOS B series, waterproof K /W/T/half-moon S series, REDEL P series connectors
--Fis chers core series 102 103 1031 104 connectors
--Fis chers minimax series
--Fis chers ultimate series
--O D U_MINI SNAP Push-Pull Circular Connectors
--O D U_AMC-advanced military connector
--O D U_AMC easy clean Connectors
--Mini connector HIROSE connectors
--Cable connector Binders M16 680 678 420 series connectors
--Circular screw fixed M8 M12 connectors
--CABLE ASSEMBLY can be designed according customer real needs.
--Accept OEM...
