Rumah ProdukKonektor J30JJ30J Series Gold Plated Miniature Rectangular Connector Custom Wire Length

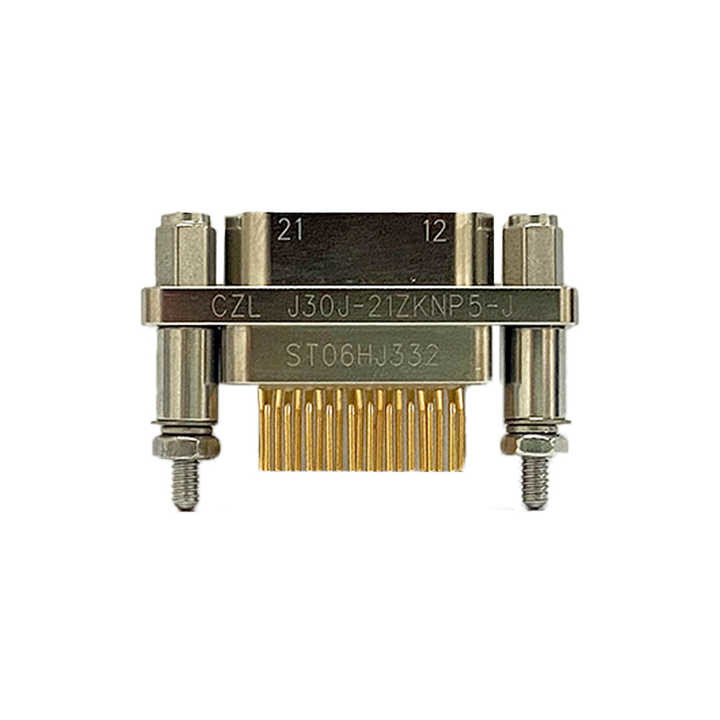

J30J Series Gold Plated Miniature Rectangular Connector Custom Wire Length

J30J Series Gold Plated Miniature Rectangular Connector Custom Wire Length
J30J Series Gold Plated Miniature Rectangular Connector Custom Wire Length
J30J Series Gold Plated Miniature Rectangular Connector Custom Wire Length J30J Series Gold Plated Miniature Rectangular Connector Custom Wire Length
Informasi Dasar
Nama merek: Raymo
Sertifikasi: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-J30J
Dokumen: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Harga: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Syarat-syarat pembayaran: T/T, D/A, D/P, Western Union, Moneygram
Supply Ability: 5000PCS Per Month
Hubungi sekarang
Resistensi isolasi: ≥ 5000 MΩ Jarak kisi: 2.54 × 2.54
Hubungi Jenis Kelamin: Steker pria/wadah wanita Jarak kontak: 1,27mm

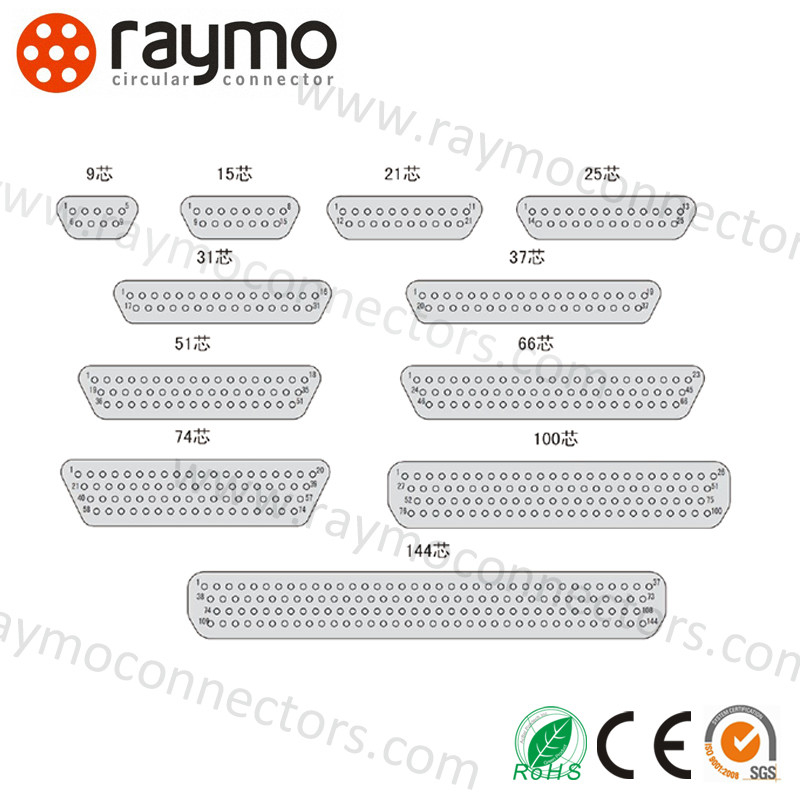

kontak: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 Konduktor Pusat: Paduan tembaga, pelapisan emas
Palting: Pelapisan Emas DWV: 800V
Menyoroti:

J30J series gold plated connector

,

miniature rectangular connector custom wire

,

J30J connector with warranty

Customized Wire Length J30J Series Miniature Rectangular Connector Coated with Gold Plating
Product Attributes
Attribute Value
Insulation Resistance ≥ 5000 MΩ
Grid Distance 2.54×2.54
Contact Gender Male Plug/female Receptacle
Contact Spacing 1.27mm
Contact 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Center Conductor Copper Alloy, Gold Plating
Plating Gold Plating
Dwv 800V
Product Overview

The J30J series connector offers versatile contact options (9-100 contacts) with customizable wire length for specific application requirements. Designed to meet MIL-C-83513 standards and compatible with ITT Cannon MDM Series connectors, it delivers high performance in demanding environments.

Featuring excellent electrical insulation (≥5000 MΩ) and a wide operating temperature range (-55°C to +125°C), this connector is ideal for harsh conditions. The copper alloy center conductor with gold plating ensures superior conductivity and minimal signal loss.

Key Features
  • Product Name: J30J series connector
  • Contact Gender: Male Plug/female Receptacle
  • Material: Metal construction
  • Temperature Range: -55°C to +125°C
  • Center Conductor: Copper Alloy with Gold Plating
  • Customizable wire length options
Technical Specifications
Parameter Specification
Contact Options 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Contact Termination Crimp
Insulation Resistance ≥ 5000 MΩ
Dwv 800V
Contact Spacing 1.27mm
Plating Gold Plating
Applications

The J30J series connector is widely used in:

  • Aerospace: Aircraft and spacecraft systems as replacement connectors
  • Telecommunications: Communication systems and networking devices
  • Industrial Automation: Control systems in harsh environments

Certified to CE, RoHS, REACH, and ISO9001:2015 standards, ensuring compliance with stringent quality requirements.

Support & Services

Our technical support team provides comprehensive assistance for installation, compatibility, and performance optimization. We offer troubleshooting and maintenance support to ensure optimal operation of your J30J series connectors.

Label:

Konektor berlapis emas seri J30J

Konektor micro-D MIL-Spec

Konektor grid 2.54×2.54

Rincian kontak
