Rumah ProdukJ30J ConnectorJ30J Series MIL-Spec Connector 500VAC 500 Mating Cycles

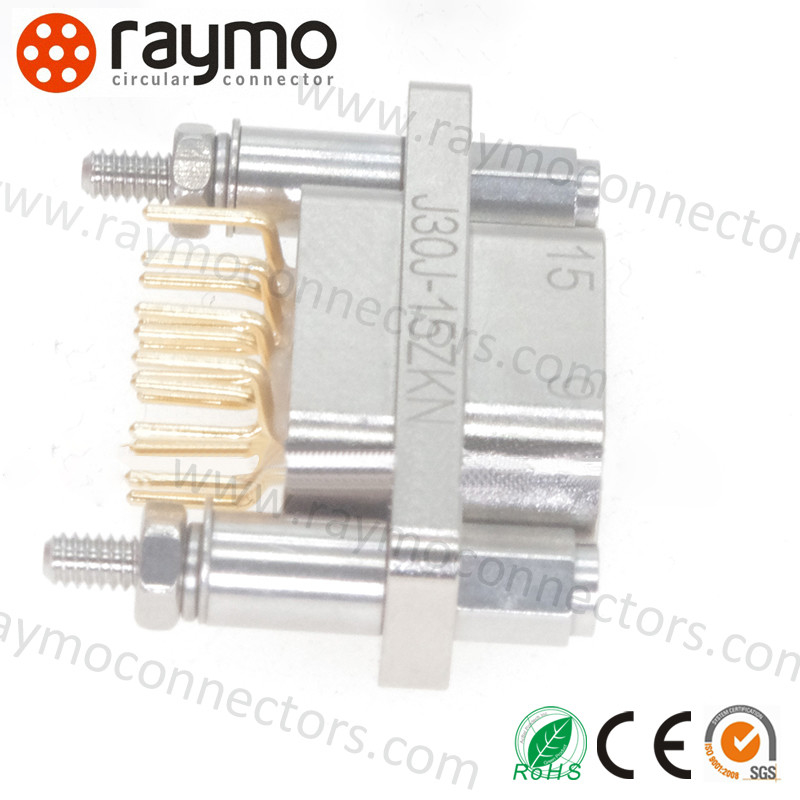

J30J Series MIL-Spec Connector 500VAC 500 Mating Cycles

J30J Series MIL-Spec Connector 500VAC 500 Mating Cycles
J30J Series MIL-Spec Connector 500VAC 500 Mating Cycles
J30J Series MIL-Spec Connector 500VAC 500 Mating Cycles J30J Series MIL-Spec Connector 500VAC 500 Mating Cycles
Informasi Dasar
Nama merek: Raymo
Sertifikasi: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-J30J
Dokumen: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Harga: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Syarat-syarat pembayaran: T/T, D/A, D/P, Western Union, Moneygram
Supply Ability: 5000PCS Per Month
Hubungi sekarang
menahan tegangan: 500VAC Panjang kabel: Seperti yang diperlukan
Pin Kontak: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 pin Aplikasi: Peralatan elektronik
Konduktor Pusat: Paduan tembaga, pelapisan emas Kisaran suhu: -55～+125℃
Peringkat tegangan: 250v Siklus Perkawinan: 500 kali
Menyoroti:

J30J MIL-Spec connector 500VAC

,

J30J series connector 500 mating cycles

,

MIL-Spec connector with 500VAC rating

500 Mating Cycles Micro-D MIL-Spec Connector for Industrial and Aerospace Applications in Extreme Conditions
Product Overview
The ITT Cannon MDM Series J30J series connector is a high-quality microminiature connector designed for reliability in extreme conditions. With a temperature range of -55 to +125 ℃ and 500 mating cycles, this connector delivers robust performance for industrial and aerospace applications.
Key Specifications
Attribute Value
Withstanding Voltage 500VAC

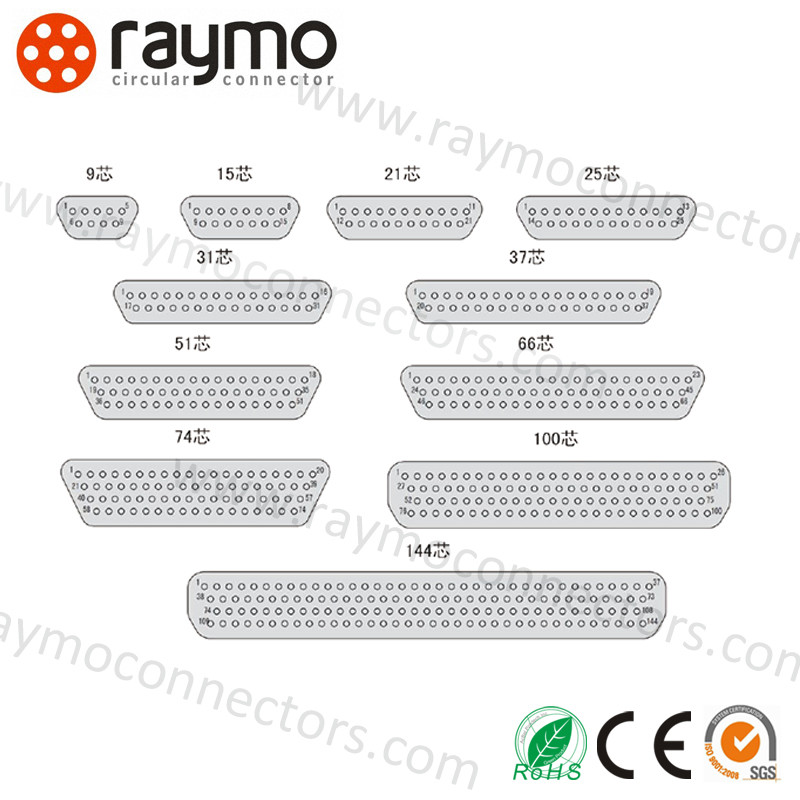

Contact Pin Options 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 Pins
Center Conductor Copper Alloy, Gold Plating
Temperature Range -55～+125 ℃
Voltage Rating 250V
Mating Cycle 500 Times
Product Features
  • Reliable Construction: Copper alloy center conductor with gold plating for optimal conductivity
  • Extreme Environment Ready: Operates in temperatures from -55 to +125 ℃
  • Secure Connections: Leak rate ≤1.01X10^-3 Pa.cm^3/s ensures airtight seals
  • Standardized Design: 2.54*2.54 grid distance for easy integration
  • Customizable: Available in multiple pin configurations (9-100 pins) with flexible cable lengths
Technical Parameters
Parameter Specification
Mating Cable AFR-250, White Wire 0.1~0.15mm²
Type Connector
Application Electronic Equipment
Certifications CE, RoHs, REACH, ISO9001:2015
Applications
The J30J series connector is ideal for demanding environments in aerospace, industrial automation, and electronic equipment. Its robust design makes it suitable for applications requiring:
  • High-reliability connections in extreme temperatures
  • Frequent mating cycles (up to 500 times)
  • Secure, leak-proof connections
  • Compact, standardized connector solutions
Support and Services
Our technical support team provides comprehensive assistance for product inquiries, troubleshooting, and application guidance to ensure optimal performance of your J30J series connectors.

Label:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
