Rumah ProdukKonektor AMCAMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging

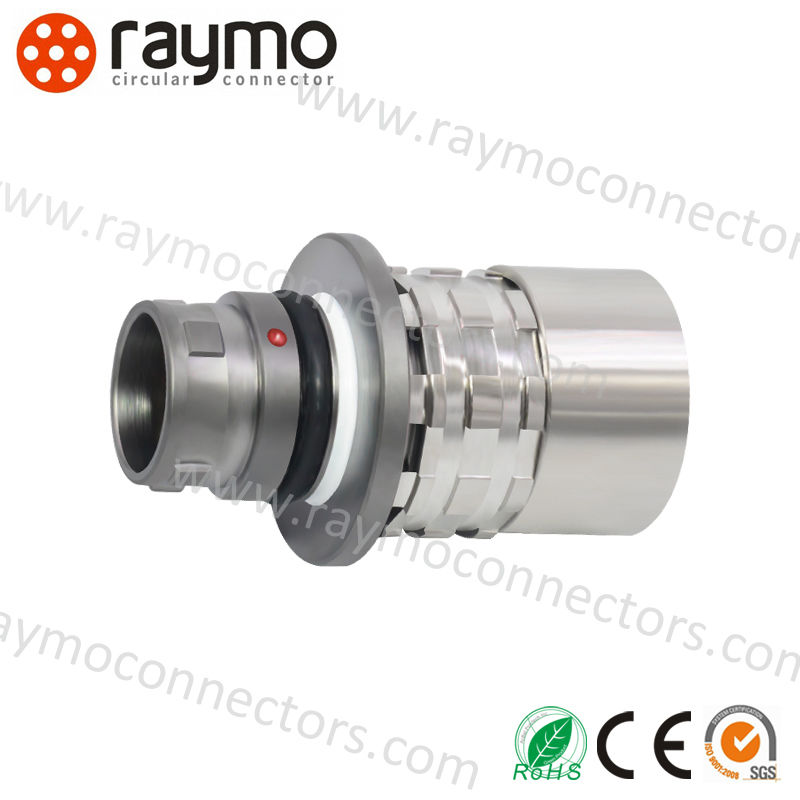

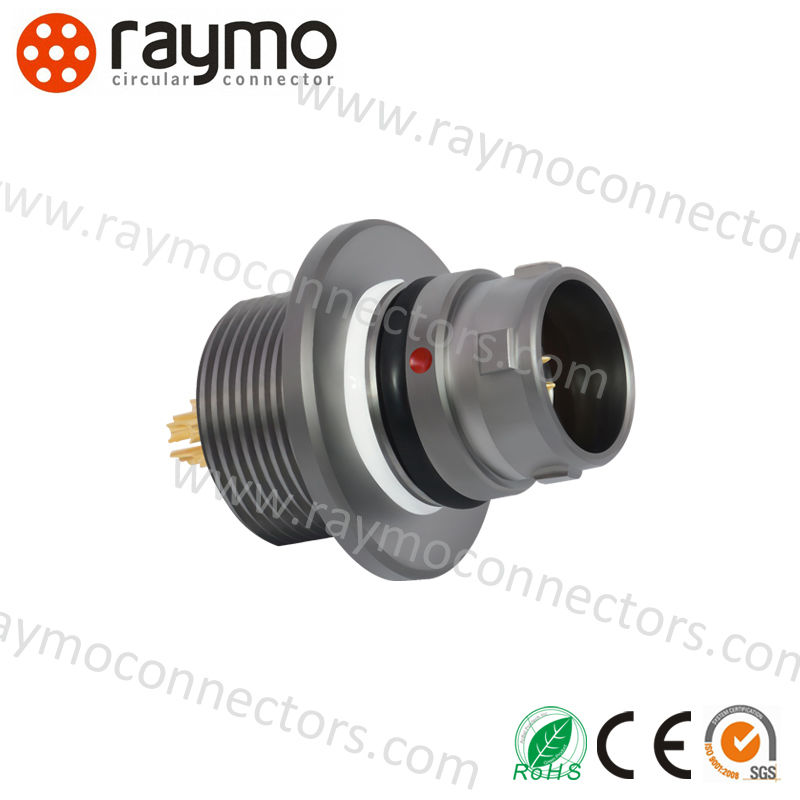

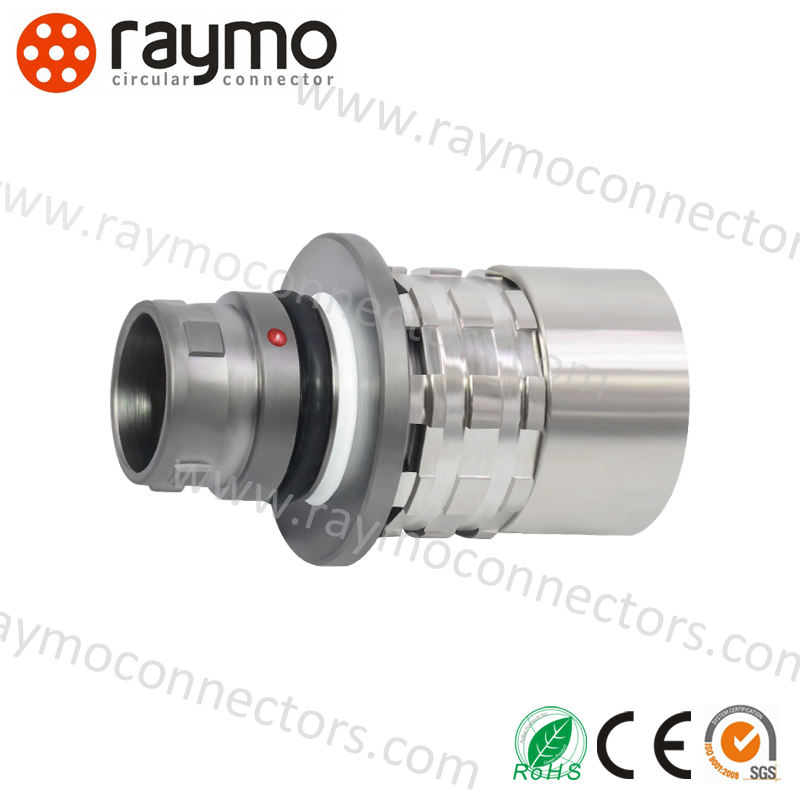

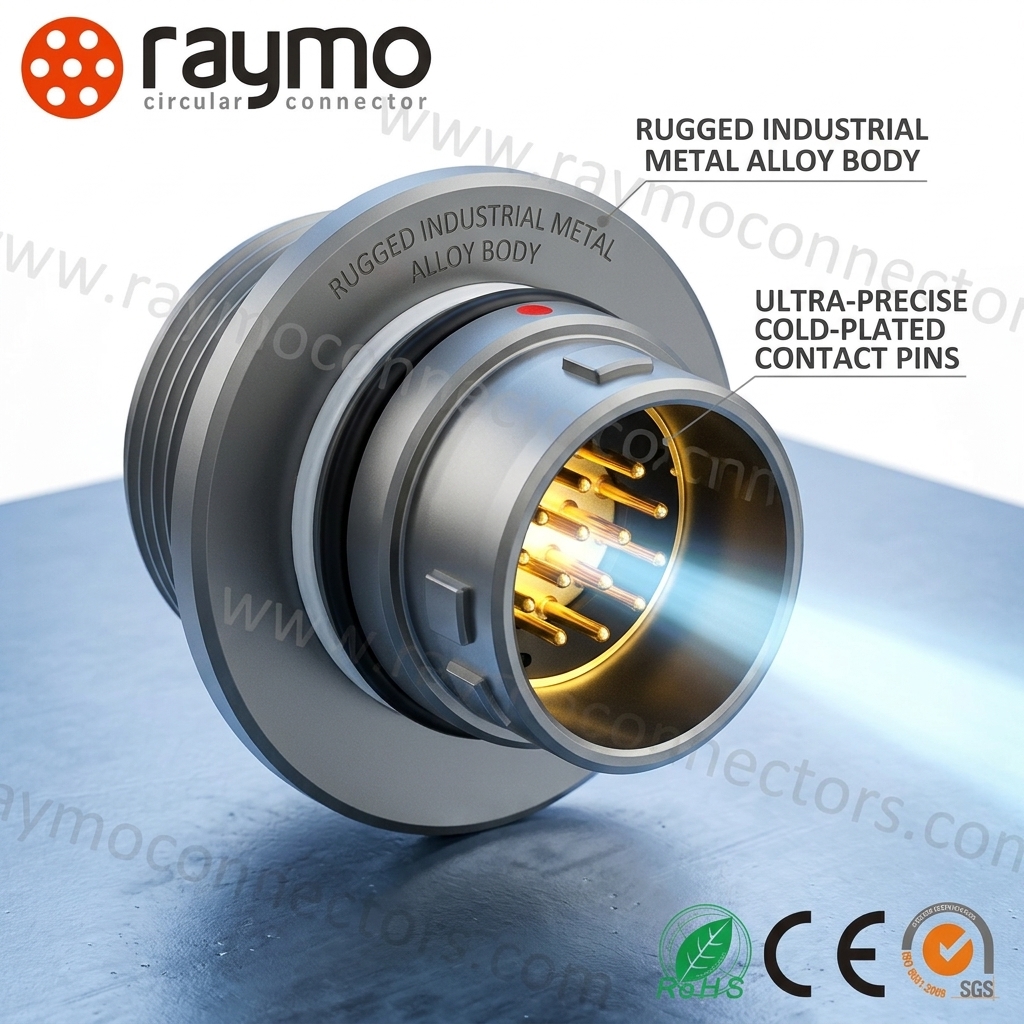

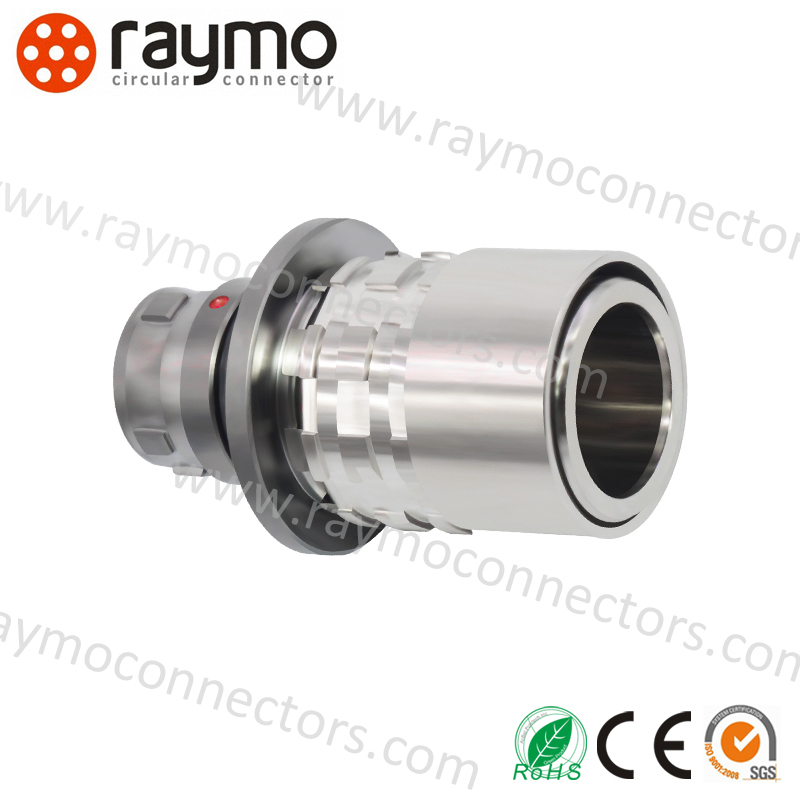

AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging

AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging
AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging
AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging
Informasi Dasar
Tempat asal: Shenzhen, Guangdong, Tiongkok
Nama merek: RAYMO
Sertifikasi: ISO9001:2015, CE, RoHS2.0, REACH, SGS
Nomor model: A11WZM-P27XBC0-0000
Kuantitas min Order: 5 buah
Harga: USD 18.00-29.50 / Piece
Kemasan rincian: Sepasang dalam kantong individual, 50 pasang per karton dengan pengering
Waktu pengiriman: 5-7 hari kerja setelah persetujuan gambar
Syarat-syarat pembayaran: T/T, L/C, D/A, Western Union
Menyediakan kemampuan: 5000 Potongan per Bulan
Hubungi sekarang
Seri: Kunci Sekrup Kepadatan Tinggi AMC Ukuran cangkang: 11w
Jumlah Kontak: 27 pin Gaya penguncian: Kunci sekrup dengan penahan anti-longgar
Kecepatan Data: 5 Gbps per pasangan diferensial Bahan isolator: PPS
Pelapisan Kontak: Emas di atas Nikel Peringkat IP: IP68 pada kedalaman 1 m
siklus kawin: 5000 Pemasangan: Flensa persegi, mur selai, dudukan PCB
Mengunci: Penguncian mekanis berkode warna Aplikasi: Panel pencitraan medis, vetronics, perlengkapan tes
Menyoroti:

27 Pin AMC Receptacle Pair

,

Screw-Lock Vibration Proof Coupling

,

5Gbps Differential Data Contacts

High density series 27 Pin Screw-Lock AMC Connector Signal-dense circular interface for imaging, vetronics and test benches that cannot afford a loose coupling. Design intent Twenty-seven contacts are packed into an 11W shell that measures barely wider than a thumb, so a single panel cut-out can carry power, differential pairs and control lines at once. The threaded coupling nut is tightened by hand to a positive stop and stays put under continuous vibration, which is why
