Rumah ProdukKonektor tahan air melingkarWear Resistant Circular Waterproof Connector Excellent Electrical Properties

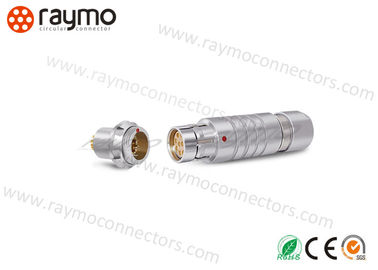

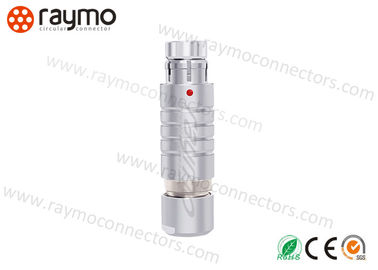

Wear Resistant Circular Waterproof Connector Excellent Electrical Properties

Wear Resistant Circular Waterproof Connector Excellent Electrical Properties
Wear Resistant Circular Waterproof Connector Excellent Electrical Properties
Wear Resistant Circular Waterproof Connector Excellent Electrical Properties Wear Resistant Circular Waterproof Connector Excellent Electrical Properties Wear Resistant Circular Waterproof Connector Excellent Electrical Properties
Informasi Dasar
Tempat asal: Shenzhen, Cina
Nama merek: RAYMO
Sertifikasi: ISO:9001-2015 CE ROHS SGS
Nomor model: S102 A054 -130
Kuantitas min Order: 1 Piece/Pieces
Harga: negotiable
Kemasan rincian: Kantong Plastik & Karton
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: T/T, L/C, T/T, Serikat Barat
Menyediakan kemampuan: 5000Potongan/Minggu
Hubungi sekarang
Nama prct: Dorong konektor penguncian diri Model: Steker pemasangan kabel
Ukuran cangkang: Seri 102 0F Nomor kontak.: 2, 3, 4, 5, 6, 7, 8.10.12.16.19pins
aplikasi: Medis, Mesin, Militer, Audio & Video, Otomatif Jenis kelamin: laki-laki, perempuan
Jenis: Kompatibel dengan konektor Fischer isolator: PPS, Peek
Bahan shell: Tembaga dengan berlapis krom Warna: Perak, hitam
Ketahanan: 5000 kali mendorong tarik Peringkat IP: IP50
Jenis kontak: kontak solder bahan kontak: Kuningan dengan berlapis emas
Port ekspor: Shenzhen Kabel yang dirakit atau tidak: Ya
Menyoroti:

waterproof wire connectors

,

waterproof cable connector



Prct Description

S102 S103 S1031 S104 series circular push pull waterproof connectors S102 A054-130

Part No.: S102 A053 -130/ RM-S-0F1C-P04JS50  cable mounted plug in size 102 with 4 (multipole) low voltage male contacts and following options



Series IP Shell Size Contacts No. with solder & PCB type
RM-F IP68 0F/102 2 3 4 5 7 9 　 　 　 　 　
1F/103 2 3 4 5 6 7 8 10 12 14 16
AF/1031 10 12 15 ( traxial ) 19 　 　 　 　 　 　 　
2F/104 2 3 4 6 8 16 19 　 　 　 　
3F/105 7 　 　 　 　 　 　 　 　 　 　



Main Features



Main Feature Secure high performance push-pull Self-locking system
Sealed up to IP68 and Hermetic
3 codes alignment Key and Polarized Keying System to avoid cross-interface.
360° EMC shielded
High pin density contributing to equipment miniaturization
Robust and shock resistant designs
Functional in a wide temperature range from -65°C to +250°C
Available solder and PCB or right angle PCB contact.
ISO:9001-2015, CE ,RoHS2.0, SGS, Reach





Technical Characteristics



Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >96hr
Climatical Category 50/175/21 Shielding (min)

> 75 dB [ at 10 MHz]
> 40 dB [ at 1 GHz]
IP Rating IP 68 Certifications

ISO9001 CE ROHS2.0 SGS




SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED



is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers ​



Applications



RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

Wear Resistant Circular Waterproof Connector Excellent Electrical Properties 0



Cable Plug Prcts Photo, Shell size and Dimension

Wear Resistant Circular Waterproof Connector Excellent Electrical Properties 1



FAQ


1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2.  What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4.  What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5.  What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6.  Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty
