Rumah ProdukKonektor tahan air melingkar10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector

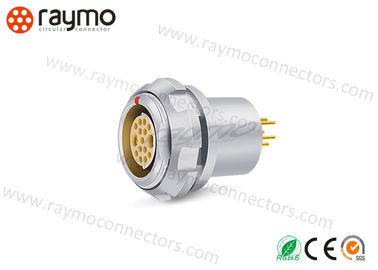

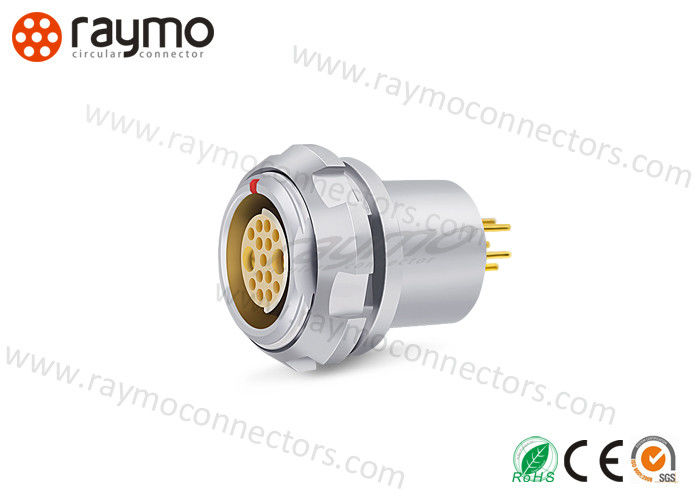

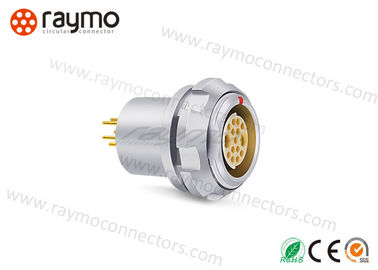

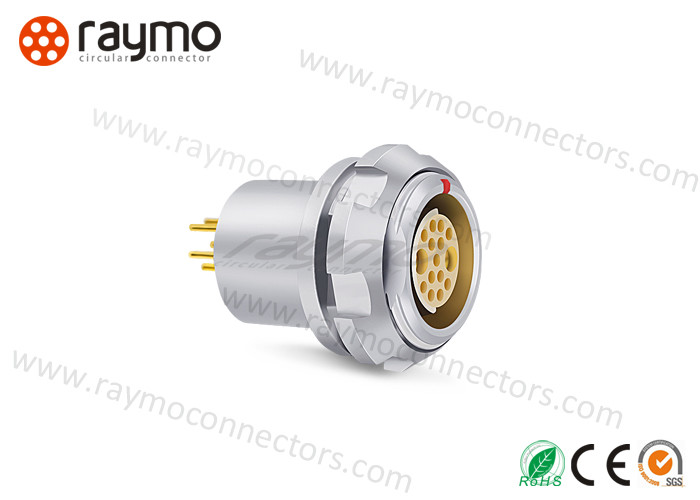

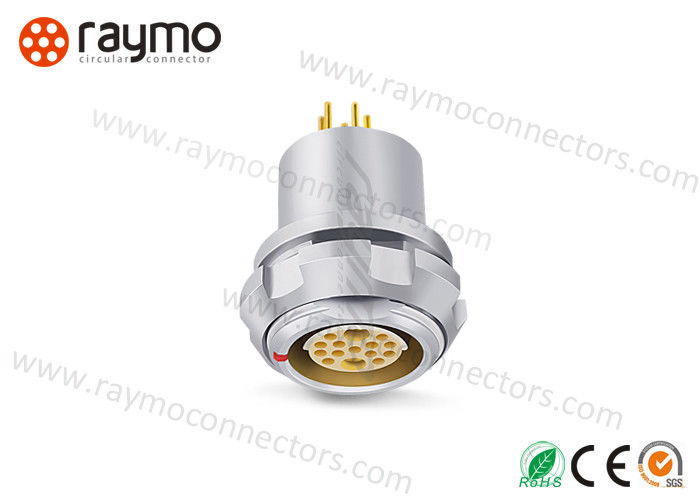

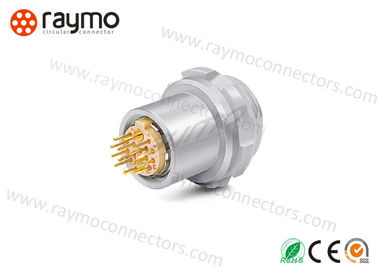

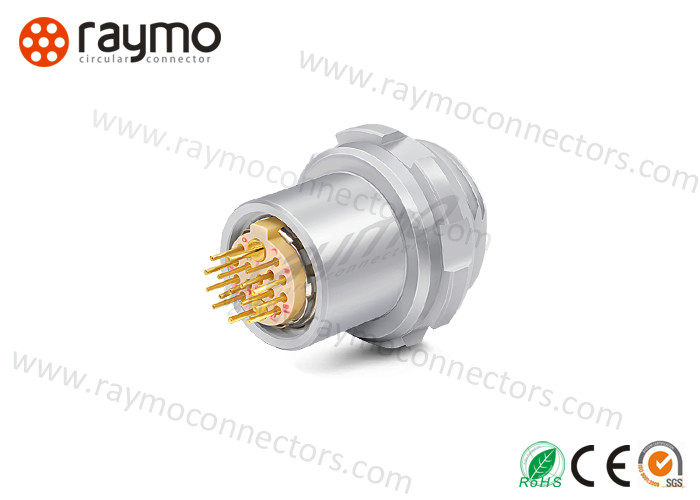

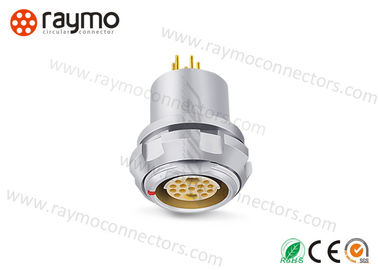

10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector

10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector
10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector
10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector 10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector 10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector 10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector
Informasi Dasar
Tempat asal: Guangdong, Cina
Nama merek: RAYMO
Sertifikasi: CE / RoHS / SGS / ISO9001:2015
Nomor model: RM-DBP-AF1C-P10KS
Kuantitas min Order: 1 buah
Harga: negotiable
Kemasan rincian: Tas PE & Karton
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/t, l/c
Menyediakan kemampuan: 5000 lembar per minggu
Hubungi sekarang
Deskripsi prct:: Pemasangan belakang (pemasangan panel belakang) Soket tetap Ukuran shell:: 1031/AF
Aplikasi:: Medis, Mesin, Militer, Audio & Video, Otomatif Hubungi no.:: Tersedia 10 pin (12, 15, 19 pin)
Isolator:: PPS / PEEK Bahan cangkang luar:: kuningan dengan berlapis krom
Warna:: Perak / hitam Bahan kontak: Kuningan dengan berlapis Emas
jenis kontak:: Pateri Peringkat IP:: IP68
Ketahanan:: 5000 siklus Pelabuhan Ekspor:: Shenzhen
Menyoroti:

waterproof wire connectors

,

waterproof electrical connectors



Prction description



P/N: RM-DBP-AF1C-P10KS / DBP 1031 A010 - 130

Description: DBP 1031/AF series back panel mount fixed socket, keying code 1, 10pin female contacts, in solder type, PPS insulator, outer shell in natural chrome plated brass



Main features

  •  Easy mating, can be blind-mated
  •  Increased safety and user friendliness
  •  Convenient grip even with gloves
  •  Increased equipment life span
  •  Robust and shock resistant designs
  •  Compact and lightweight construction
  •  High pin density and hybrid contacts
  •  High performance connectors
  •  Sealed up to IP68 and corrosion resistant
  •  Sterilizable
Mechanical and Climatical Characteristics
Endurance >5000cycles (IEC60512-5test9a) Temperature range -55°C, +250°C
Resistance to vibration 10-2000Hz,15g (IEC 60512-4 test 6d) Humidity Up to 95% at 60°C
Shock resistance 100g, 6ms (IEC 60512-4 test 6c) Climatical category 55/175/21 (IEC 60068-1)
Salt spray corrosion test >96h (IEC 60512-6 test 11f) Protection index (mated) IP68 (IEC 60529)
Electrical Characteristics

Shielding efficiency

(at 10 MHZ)

 >95 dB (IEC 60619-1-3)

Shielding
efficiency

(at 1 GHz)

 >80 dB (IEC 60619-1-3)



Photo & Dimensions



10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector 0

Application



RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.

About us



SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.



With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.



Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.





10 Pin Waterproof Connector DBP 1031 A 010 - 130 Rear Mount Fixed Connector 1



Our Service



1. OEM & ODM services are welcome.
2. Free sample is available.

3. Sample order is accepted.
4. Respond within 24 hours for your inquiry and any other questions.
5. Follow up your shipment and trace it every two days until you get it.

6. Provide professional solutions once you have any questions after you received the goods.



FAQ



1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.


2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.


3. Free sample
Raymo: Available. Any needs, please contact us.


4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.


5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .


6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

Label:

konektor kabel tahan air

Konektor Listrik Tahan Air

Konektor Kawat Tahan Air

Rincian kontak
Allison Nong

Nomor telepon : 18617126037

Ada apa : +8618617126037

Lebih Konektor tahan air melingkar
