Prct Description

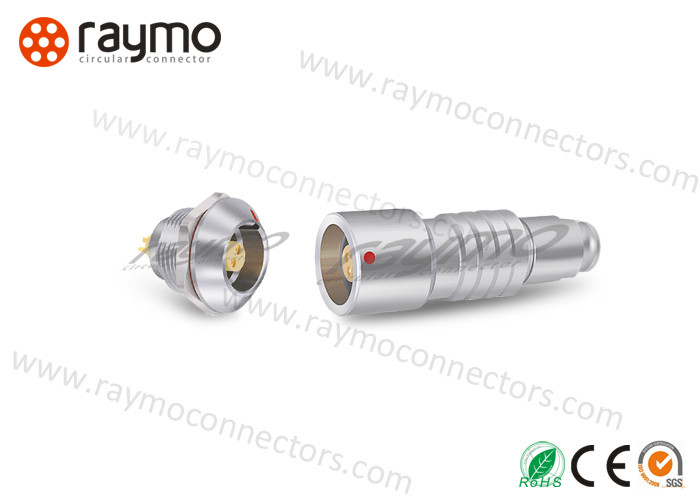

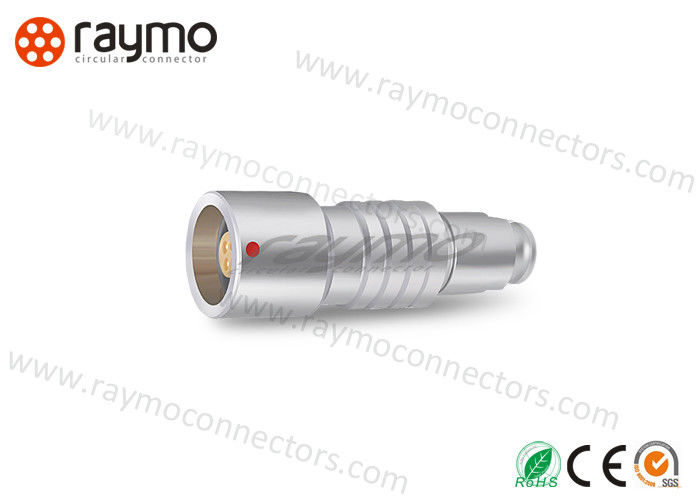

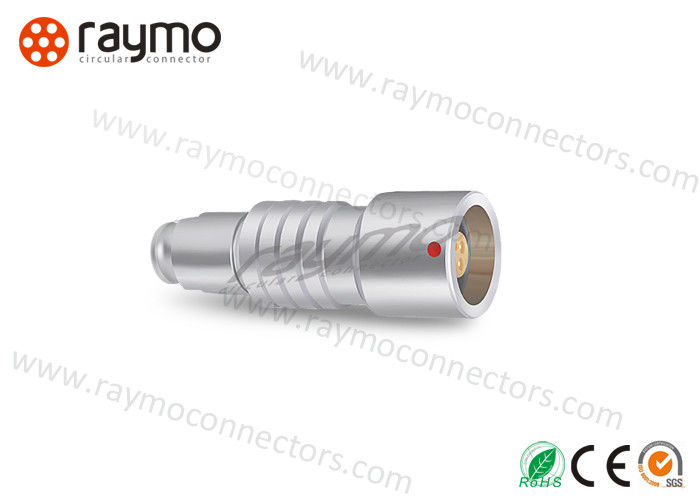

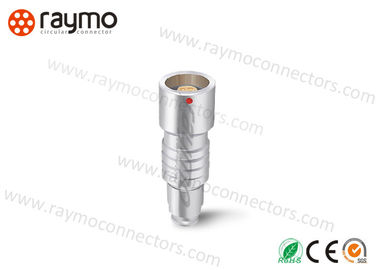

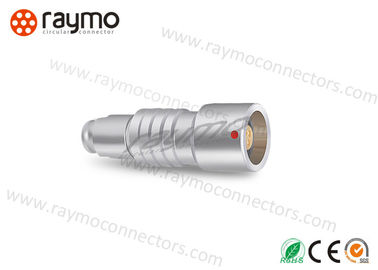

P/N: RM-PHG-0KC-309KS72Z (EEG.1K.306.CLLC72Z)
Description: PHG 0K series free cable socket, 1 key, 0 degrees, 9pin male contacts in solder type, outer shell in natural chrome-plated brass, PPS insulator, 72 cable collet for 6.2-7.2mm cable
|
|
Contacts No. with solder & PCB type
|
|
|
2 3 4 5 6 7 9
|
|
|
2 3 4 5 6 7 8 10 12 14 16
|
|
|
2 3 4 5 6 7 8 10 12 14 16 19 26
|
|
|
3 4 6 7 8 10 12 14 16 18 21 30
|
Main features:
– Security of the Push-Pull latching system
– Watertight connection (IP 68/IP 66)
– Multipole types 2 to 30 contacts
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding
– High packing density for space savings
– Rugged housing for extreme working conditions.
– Can be 100% compatible with original connectors
– High quality with reasonable prices
| Technical Characteristics |
| Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
| Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP68 |
| Temperature Range |
-55°C~250°C
(-20°C~100°C for waterproof type) |
Climatical category |
55/175/21 |
| Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ
>80db at 1GHZ
|
| Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS
ISO9001:2019 |
Photo & Dimensions:
Application
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Packing & Delivery
Packing:
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
