Name: S SS SF WSO Audio Vedio Circular Waterproof Connector PPS PEEK
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: S 102 A052 140
Price: 11.98 USD
Availability: InStock

S SS SF WSO Audio Vedio Circular Waterproof Connector PPS PEEK

Informasi Dasar

Tempat asal:	Shenzhen, Cina
Nama merek:	RAYMO
Sertifikasi:	SGS, REACH, RoHS2.0, ISO:9001-2015, CE
Nomor model:	S 102 A052 140

Kuantitas min Order:	5 potong/potong
Harga:	negotiable
Kemasan rincian:	Kantong Plastik & Karton
Waktu pengiriman:	5-7WDS
Syarat-syarat pembayaran:	Western Union, L/C, D/A, D/P, T/T
Menyediakan kemampuan:	5000Potongan/Minggu

Hubungi sekarang

Keterangan:

Konektor tahan air melingkar

Ukuran cangkang:

0F = 102

Kontak:

3 tiang

isolator:

PPS/PEEK

Warna:

Kuningan berlapis krom hitam

Spesifikasi:

0F 3 pin konektor solder jantan

Peringkat IP:

IP68

Ketahanan:

5000 kali mendorong tarik

Menyoroti:

Circular Waterproof Connector PPS PEEK

WSO Circular Waterproof Connector

SS SF Cable Plug Connector

Cable Mouted Plug Connector S SS SF WSO Audio Vedio Circular Waterproof Connector

RM-F series circular connector in weapons and equipment of all kinds of electronic systems,

electric connector in components and devices, components, and components, electrical connection

between system and system and signal transmission, is necessary to constitute a complete system of

basic components. IP68 ranking, under water 1.5 meter works well.

Parts Description for Circular Waterproof Connector

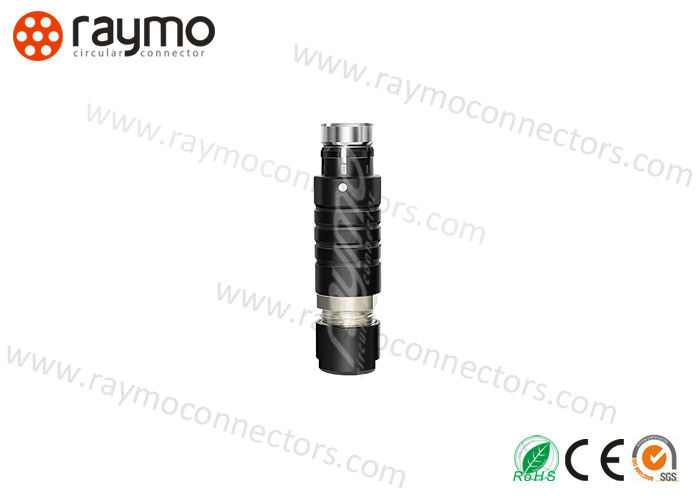

RM-S-0F1S-P03JS50 = S 102 A052 140

Circular Cable Connectors straight plug, 3 poles contacts, shell in Black chrome plated brass, contacts

in gold plated brass, male solder contacts, 50 cable collet suitable for 4.2-5.2mm diameter cable

Main Features of waterproof connector

Size: Fischer 102, 103, 1031, 104

Pins: Pins: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin

Socket with vacuum tight structure

Custom cable assembly service welcome

Fast delivery time: 3-5working days for usual models

Application: Camera, medical, Instrumentation, Industry,Energy

100% compatible with Original

Technical Characteristics

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP68	Endurance(shell)	5000 mating cycles

Raymo Company intrce

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof

Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts.

Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to

the very end. Our factory has gained ISO9001. If you are searching for waterproof connector metal fast lock,

please feel free to contact us.

FAQ

1. Can I order a small list ?

yes, you can, 1 piece is ok.

2. What quote do you offer?

EXW, FOB, CIF and others ways according the your needs.

3. How transport?

Sea Freight, Air Freight and others Express Delivery ways for you.

4. What is the quality of your prcts guarantee?

We have passed ISO9001:2015 Quality Management System Certification

5. Do you have after-sales service?

Certainly,you can contact us at any time.

Datesheet, inquiry and price now! Short Lead time and Competitive Price!!!
